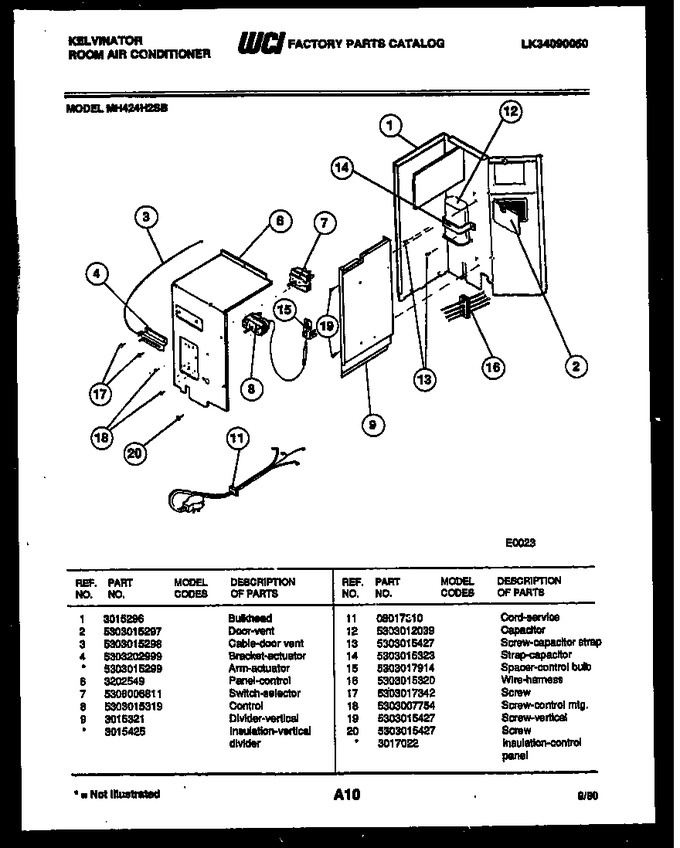

02 - Cabinet Parts


03 - Electrical Parts


04 - Air Handling Parts


05 - System Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3015296		Bulkhead		Appelez-nous	-
2	5303015297		Door-vent		Appelez-nous	-
3	5303015298		Cable-door Vent		Appelez-nous	-
4	5303202999		Bracket-actuator		Appelez-nous	-
6	3202549		Panel - Control		Appelez-nous	-
7	5308006811		Switch-selector				$ 33.65
8	5303015319		Control		Appelez-nous	-
9	3015321		Divider - Vertical		Appelez-nous	-
11	08017310		Cord - Service		Appelez-nous	-
12	5303012039		Capacitor		Appelez-nous	-
13	5303015427		Screw-capacitor Strap		Appelez-nous	-
14	5303015323		Strap-capacitor		Appelez-nous	-
15	5303017914		Spacer-control Bulb		Appelez-nous	-
16	5303015320		Wire-harness		Appelez-nous	-
17	5303017342		Screw		Appelez-nous	-
18	5303007754		Screw-control Mtg.		Appelez-nous	-
19	5303015427		Screw-vertical		Appelez-nous	-
20	5303015427		Screw		Appelez-nous	-
*17552	3017022		Insulation-control Panel		Appelez-nous	-
4A	5303015299		Arm-actuator (non-illustrated)		Appelez-nous	-
9A	3015425		Insulation-vertical Divider (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
