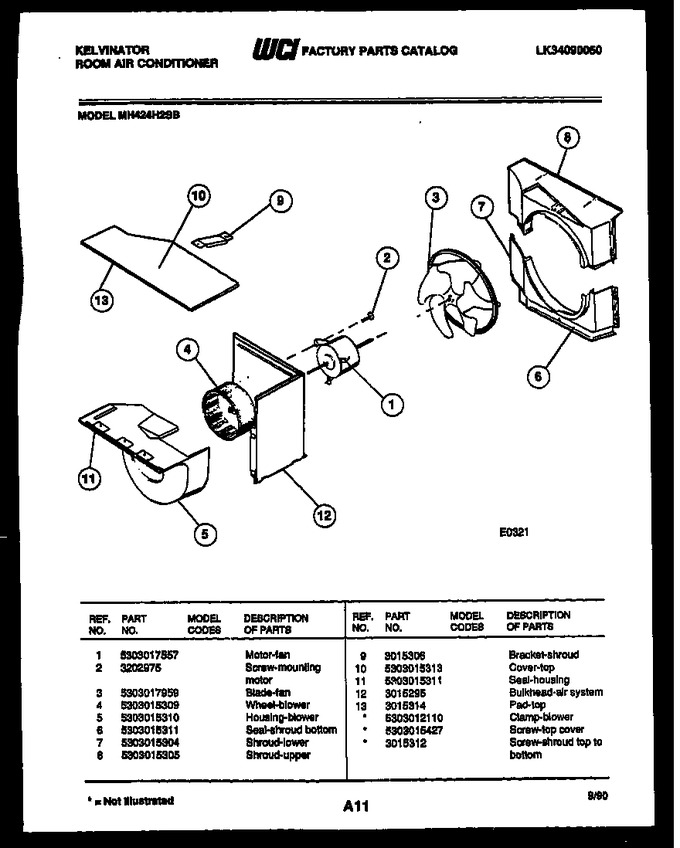

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017557 | Motor - Fan |
|
- | |||||
| 2 | 3202975 | Screw-mounting Motor |
|
- | |||||
| 3 | 5303017959 | Blade-fan |
|
- | |||||
| 4 | 5303015309 | Wheel-blower |
|
- | |||||
| 5 | 5303015310 | Housing-blower |
|
- | |||||
| 6 | 5303015311 | Seal-shroud Bottom |
|
- | |||||
| 7 | 5303015304 | Shroud - Lower |
|
- | |||||
| 8 | 5303015305 | Shroud - Upper |
|
- | |||||
| 9 | 3015306 | Bracket-shroud |
|
- | |||||
| 10 | 5303015313 | Cover - Top |
|
- | |||||
| 11 | 5303015311 | Seal - Housing |
|
- | |||||
| 12 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 13 | 3015314 | Pad-top |
|
- | |||||
| *17554 | 5303015427 | Screw-top Cover |
|
- | |||||
| *17554 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| *17554 | 3015312 | Screw-shroud Top To Bottom |
|
- |
