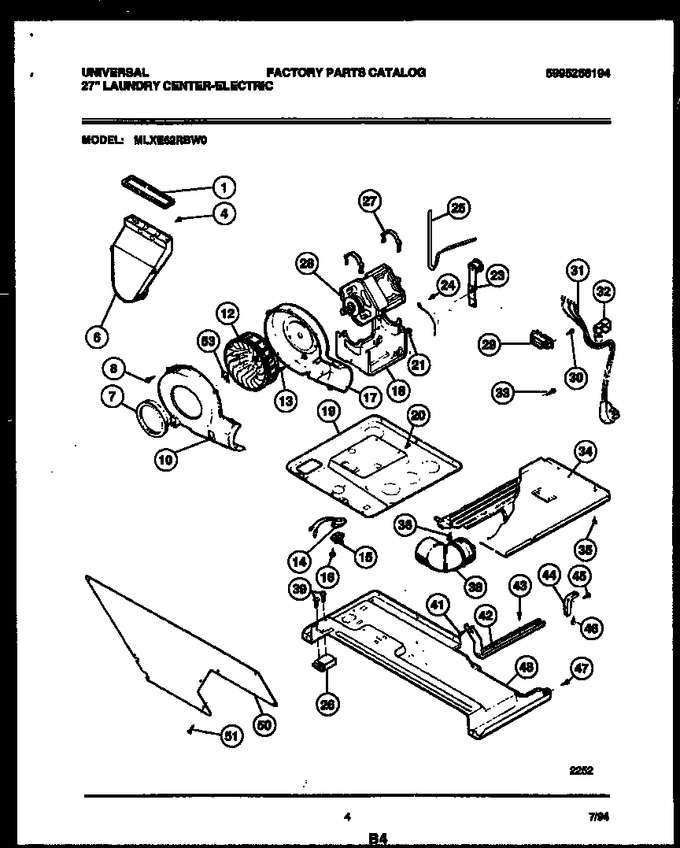

02 - Cabinet And Component Parts
03 - Motor, Blower And Cabinet Parts
04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131151200 | Seal-air Duct To Front Panel |
|
$ 44.45 | |||||
| 4 | 131088600 | Fastener |
|
- | |||||
| 6 | 131311200 | Air Duct |
|
- | |||||
| 7 | 3204490 | Seal-hsg. To Air Duct |
|
$ 14.18 | |||||
| 8 | 3205245 | Screw (6) |
|
- | |||||
| 10 | 131287600 | Front-blower Housing |
|
- | |||||
| 12 | 131476300 | Wheel-blower (Replaces: 5303212513) |
|
Immediately | $ 47.00 | ||||
| 13 | 131168200 | Screw (3) |
|
Immediately | $ 14.18 | ||||
| 14 | 5303206879 | External Thermostat Heater |
|
- | |||||
| 15 | 3204307 | Thermostat-control |
|
$ 136.79 | |||||
| 16 | 3204308 | Screw |
|
- | |||||
| 17 | 5303271179 | Housing-blower Rear |
|
- | |||||
| 18 | 131210401 | Motor Cradle |
|
- | |||||
| 19 | 3204311 | Motor-cradle-upper Pan |
|
- | |||||
| 20 | 131168200 | Screw-pan To Shield & Side Panel (4) |
|
Immediately | $ 14.18 | ||||
| 21 | 3281077 | Screw |
|
- | |||||
| 22 | 3205241 | Spring-idler |
|
$ 75.83 | |||||
| 23 | 3205242 | Arm-idler |
|
$ 205.60 | |||||
| 24 | 131168200 | Screw Ground |
|
Immediately | $ 14.18 | ||||
| 25 | 137292700 | Belt-dryer (Replaces: 5303283287) |
|
Immediately | $ 9.34 | ||||
| 26 | 5303212870 | Block (2) |
|
- | |||||
| 27 | 5303212834 | Clamp |
|
$ 3.78 | |||||
| 28 | 5303283288 | Dryer Motor |
|
$ 251.69 | |||||
| 29 | 5303272121 | Terminal Block |
|
- | |||||
| 30 | 5308015309 | Screw (2) |
|
- | |||||
| 31 | 5303212832 | Power Cord |
|
- | |||||
| 32 | 3204317 | Strain Relief |
|
- | |||||
| 33 | 134154100 | Screw (Replaces: 131301100) |
|
$ 13.46 | |||||
| 34 | 131112001 | Shield |
|
- | |||||
| 35 | 131168200 | Screw (6) |
|
Immediately | $ 14.18 | ||||
| 36 | 131243700 | Screw |
|
$ 3.36 | |||||
| 38 | 3204320 | Elbow |
|
- | |||||
| 39 | 131205100 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 41 | 131168200 | Screw-bracket To Side Panels (4) |
|
Immediately | $ 14.18 | ||||
| 42 | 3204324 | Interior Marrage Bracket (2) |
|
- | |||||
| 43 | 3204325 | Screw-bracket To Bracket (40) |
|
- | |||||
| 44 | 3204326 | External Bracket (2) |
|
$ 43.24 | |||||
| 45 | 131168200 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 46 | 3204325 | Screw (2) |
|
- | |||||
| 47 | 131168200 | Screw (6) |
|
Immediately | $ 14.18 | ||||
| 48 | 5303212871 | Pan-bottom |
|
- | |||||
| 50 | 3204329 | Cover-safety |
|
$ 40.16 | |||||
| 51 | 131168200 | Screw (7) |
|
Immediately | $ 14.18 | ||||
| 53 | 5304488479 | Clamp (Replaces: 3204303) |
|
Immediately | $ 32.09 | ||||
| *10401 | 5303209915 | Snap Bushing (2) |
|
- |
