02 - Cabinet And Component Parts
03 - Motor, Blower And Cabinet Parts
04 - Console And Control Parts
05 - Cabinet Parts

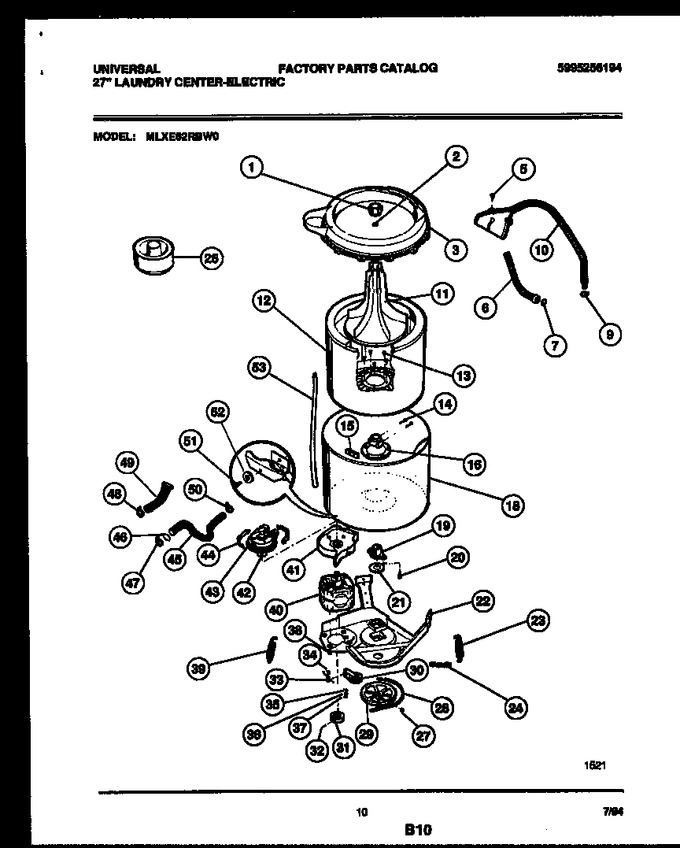

06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204395 | Cap-agitator |
|
$ 50.38 | |||||
| 2 | 3204396 | Seal |
|
$ 30.02 | |||||
| 3 | 131196700 | Cover-splash Tub |
|
- | |||||
| 5 | 131205100 | Screw |
|
Immediately | $ 14.18 | ||||
| 6 | 3804FF | Hose-inlet (2) (Replaces: 5303271009) |
|
Immediately | $ 16.80 | ||||
| 7 | 5303161296 | Washer |
|
Immediately | $ 2,372.96 | ||||
| 9 | 131122006 | Clamp |
|
- | |||||
| 10 | 3204400 | Nozzle & Hose Assy |
|
- | |||||
| 11 | 3204401 | Agitator |
|
$ 126.81 | |||||
| 12 | 131099500 | Tub-spin |
|
- | |||||
| 13 | 137546400 | Screw (5) (Replaces: 5303283293) |
|
$ 28.35 | |||||
| 14 | 137539500 | Screw (Replaces: 131192800) |
|
$ 20.24 | |||||
| 15 | 137107000 | Lockplate (Replaces: 5308001923) |
|
Immediately | $ 26.94 | ||||
| 16 | 5303283294 | Trunnion |
|
- | |||||
| 18 | 3204404 | Tub Splash & Bearing Assembly |
|
- | |||||
| 19 | 3204405 | Bearing-upper Spin |
|
Immediately | $ 97.81 | ||||
| 20 | 3205150 | Screw |
|
$ 3.55 | |||||
| 21 | 5308002401 | Washer |
|
Immediately | $ 16.00 | ||||
| 22 | 3204408 | Leg & Dome |
|
- | |||||
| 23 | 134886600 | Spring-vertical (short) (Replaces: 5303208858) |
|
Immediately | $ 37.57 | ||||
| 24 | 5303208859 | Spring-horizontal (3) |
|
- | |||||
| 25 | 3205405 | Fabric Dispenser |
|
- | |||||
| 27 | 5303270023 | Screw |
|
$ 29.78 | |||||
| 28 | 134511600 | Belt-washer (Replaces: 131234000) |
|
Immediately | $ 28.41 | ||||
| 29 | 5303272070 | Pulley-transmission |
|
- | |||||
| 30 | 131312800 | Idler Arm |
|
- | |||||
| 31 | 3204423 | Pulley-motor |
|
$ 140.07 | |||||
| 32 | 3204424 | Roll Pin |
|
$ 12.60 | |||||
| 33 | 3204425 | Torsion Spring |
|
$ 45.09 | |||||
| 34 | 3204426 | Sleeve-idler Pivot |
|
$ 9.35 | |||||
| 35 | 3161433 | Ring-retaining |
|
$ 18.79 | |||||
| 36 | 5303261031 | Washer-pivot Shaft |
|
$ 12.71 | |||||
| 37 | 5303161306 | Washer-spring |
|
$ 12.49 | |||||
| 38 | 5303209678 | Nut-hex (4) |
|
- | |||||
| 39 | 134885900 | Spring-vertical (2) (Replaces: 5303208860) |
|
$ 21.27 | |||||
| 40 | 5303284905 | Motor |
|
- | |||||
| 41 | 131081700 | Shield-motor |
|
$ 84.26 | |||||
| 42 | 3204451 | Slinger-pump |
|
- | |||||
| 43 | 131208500 | Pump-complete |
|
- | |||||
| 44 | 131217100 | Clip-pump |
|
- | |||||
| 45 | 3204454 | Hose-pump To Coupler |
|
- | |||||
| 46 | 3204455 | Clip-hose To Leg |
|
- | |||||
| 47 | 3204456 | Clamp |
|
- | |||||
| 48 | 3204457 | Clamp |
|
- | |||||
| 49 | 5303931759 | Hose-pump To Tub |
|
$ 223.26 | |||||
| 50 | 3204456 | Clamp |
|
- | |||||
| 51 | 3204459 | Screw |
|
$ 24.20 | |||||
| 52 | 131315800 | Plate, Leg Bolt |
|
- | |||||
| 53 | 5304401845 | Tube, Pressure (Replaces: 5300771996) |
|
$ 58.12 | |||||
| *10402 | 5303212877 | Insert-spring Adj |
|
$ 18.38 | |||||
| *10402 | 5303209903 | Clip-pressure Tube (2) |
|
- |
