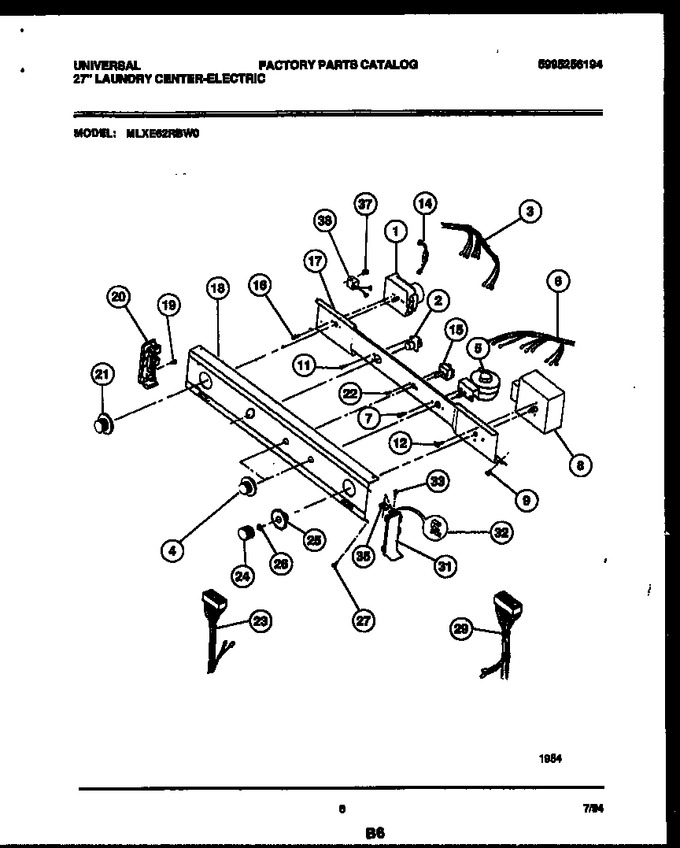

02 - Cabinet And Component Parts


03 - Motor, Blower And Cabinet Parts


04 - Console And Control Parts


05 - Cabinet Parts


06 - Tub Detail


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303297177		Timer - Dryer				$ 229.64
2	5303209890		Switch-start		Appelez-nous	-
3	131324000		Harness-dryer Control		Appelez-nous	-
4	131858004		Knob-rotary (2)   (Replaces: 5303210338)			Immediately	$ 55.29
5	5303209894		Switch - Pressure		Appelez-nous	-
6	131205700		Harness-washer - Control		Appelez-nous	-
7	131168200		Screw			Immediately	$ 14.18
8	131294000		Timer-washer		Appelez-nous	-
9	131168200		Screw			Immediately	$ 14.18
11	218359202		Screw   (Replaces: 5303283289)				$ 10.63
12	218359202		Screw   (Replaces: 5303283289)				$ 10.63
14	131285000		Resistor-power		Appelez-nous	-
15	5308008463		Switch-temp -washer				$ 84.39
16	218359202		Screw   (Replaces: 5303283289)				$ 10.63
17	131112102		Bracket-control		Appelez-nous	-
18	131330600		Panel-control		Appelez-nous	-
19	131243700		Screw				$ 3.36
20	5303209671		End Cap-lh		Appelez-nous	-
21	131859104		Knob-dryer Assy   (Replaces: 5303210340)			Immediately	$ 60.72
22	3161259		Screw				$ 6.83
23	131305600		Harness - Dryer		Appelez-nous	-
24	5303210341		Knob-washer		Appelez-nous	-
25	5303209901		Indicator-washer Timer		Appelez-nous	-
26	3205248		Spacer-shaft				$ 13.02
27	3205253		Screw		Appelez-nous	-
29	131200500		Harness-washer		Appelez-nous	-
31	5303210650		End Cap-rh		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
33	08010789		Screw (4)		Appelez-nous	-
35	5308014350		Clip (4)		Appelez-nous	-
37	218359202		Screw   (Replaces: 5303283289)				$ 10.63
38	5303286537		Buzzer				$ 93.61
*10401	5303270950		Switch-temp Dryer		Appelez-nous	-
*10401	5303210651		Spacer-pad		Appelez-nous	-
*10401	3161259		Screw-temp Switch				$ 6.83

    View Diagram in Separate Window       Print Part List
