SELECT A DIAGRAM

01 - Cover

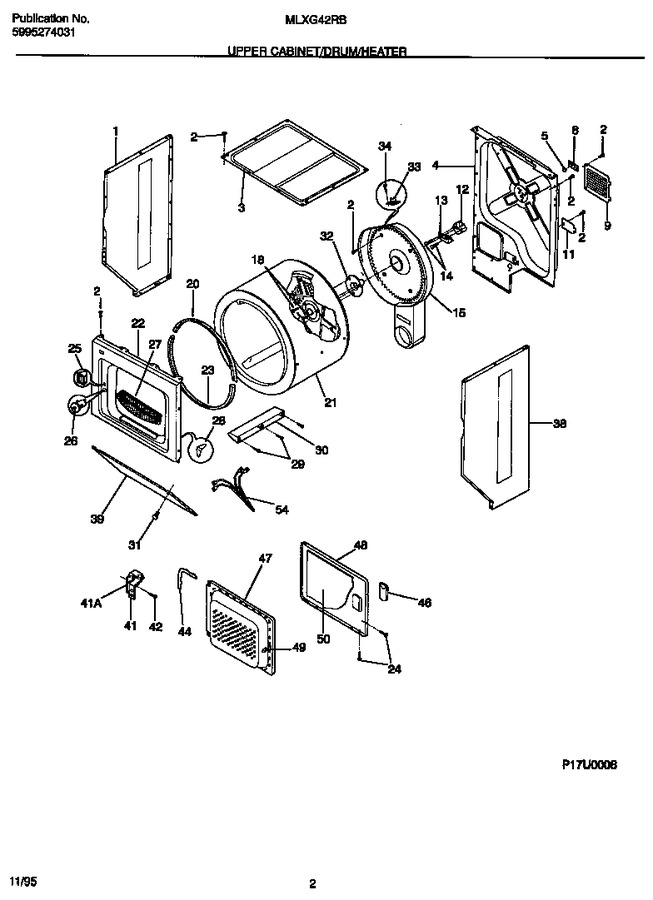

02 - Upper Cabinet/drum/heater


03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131084700		Panel-left Side-white				$ 93.82
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
3	3204247		Panel, Galvanized		Appelez-nous	-
4	5303283283		Panel-rear		Appelez-nous	-
5	5303281019		Ball				$ 16.30
6	5303281020		Clip-ball				$ 17.01
9	3204249		Panel-access,dryer		Appelez-nous	-
11	5303207395		Cover-term Block		Appelez-nous	-
12	131825900		Bearing-shaft   (Replaces: 5303281008)			Immediately	$ 10.97
13	131724301		Bracket-bearing   (Replaces: 5303281023)			Immediately	$ 25.66
14	131205400		Screw-bracket, 10-16b X 1.375, Cr/sq Drive				$ 12.76
15	5303207394		Housing-heat & Duct				$ 385.88
18	131378200		Screw, Pan Hd Locking, 10-16ab X 0.375, Cr/sq Drive		Appelez-nous	-
20	DE790		Glide-drum   (Replaces: 5303937123)			Immediately	$ 40.53
21	131217501		Drum-dryer		Appelez-nous	-
22	131150702		Panel-front-white		Appelez-nous	-
23	5303283286		Felt-lower				$ 48.04
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	5366021400		Catch, Door   (Replaces: 5307521419)			Immediately	$ 55.99
26	5308001614		Switch-door		Appelez-nous	-
27	WG04L05872		Trap-lint   (Replaces: 131152700)				$ 90.50
28	5303281074		Clip-guide				$ 18.27
29	131382300		Screw-vane, Quadrex Head, 10-14 X 1.00, Special			Immediately	$ 13.46
30	137552900		Vane   (Replaces: 5303201200)				$ 54.95
31	131202300		Screw, Pph Ab, 10-16 X .625			Immediately	$ 13.46
32	131777700		Shaft Assy   (Replaces: 131378400)			Immediately	$ 71.87
33	5303207396		Thermostat-safety		Appelez-nous	-
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
38	131084800		Panel-right Side-white		Appelez-nous	-
39	137546910		Panel-access-white   (Replaces: 131084402)				$ 184.19
41	3204275		Hinge-upper				$ 62.95
41	3204276		Hinge-lower		Appelez-nous	-
42	3205239		Screw-hinge, Splnd Ab St/c, 10.16 X .50		Appelez-nous	-
44	137551901		Gasket-door   (Replaces: 131129900)			Immediately	$ 41.00
46	131063600		Handle-door-white		Appelez-nous	-
47	5303300245		Door-inner-white		Appelez-nous	-
48	3204284		Door-outer-white		Appelez-nous	-
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 19.85
50	134535300		Shield-heat   (Replaces: 3204286)				$ 60.25
54	3205631		Harness-door Switch		Appelez-nous	-
*87320	131464000		Plug-dome Head		Appelez-nous	-
*87321	5303209889		Plug-hole		Appelez-nous	-
*87322	5303281103		Tie-harness		Appelez-nous	-
