SELECT A DIAGRAM

01 - Cover


02 - Upper Cabinet/drum/heater


03 - Motor/blower/belt

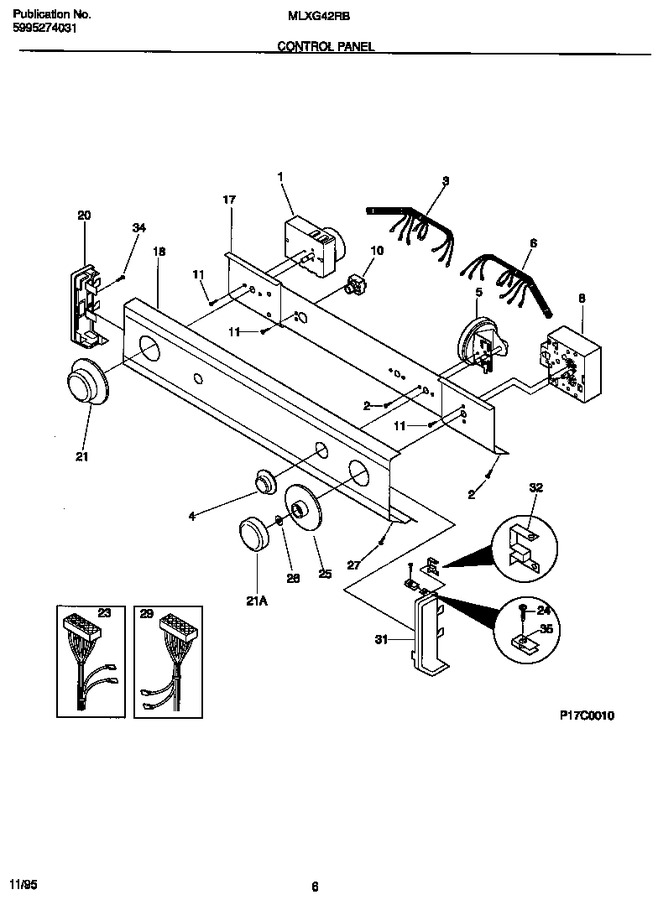

04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131225400		Timer		Appelez-nous	-
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
3	131323300		Harness-dryer Cont.		Appelez-nous	-
4	131858004		Knob-rotary   (Replaces: 5303210338)			Immediately	$ 55.29
5	5303209894		Switch - Pressure		Appelez-nous	-
6	131430700		Harness-washer, Control		Appelez-nous	-
8	131351100		Timer-washer		Appelez-nous	-
10	5303209890		Switch-push Start		Appelez-nous	-
11	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131288002		Bracket-controls		Appelez-nous	-
18	131330000		Panel-control, Almond		Appelez-nous	-
20	131288100		End Cap-lh				$ 59.85
21	5303210341		Knob-washer Timer		Appelez-nous	-
21	131859104		Knob-dryer Timer   (Replaces: 5303210340)			Immediately	$ 60.72
23	131315600		Harness-main Dryer		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	5303209901		Dial-timer		Appelez-nous	-
26	3205248		Spacer-tmr Shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131200500		Harness-washer, Lower		Appelez-nous	-
31	131288210		End Cap-rh				$ 54.65
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
*87328	131209800		Clamp-sw. Pressure				$ 65.92
*87329	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
*87330	5303210651		Pad-spacer, Cork		Appelez-nous	-
*87331	5303281103		Tie-harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
