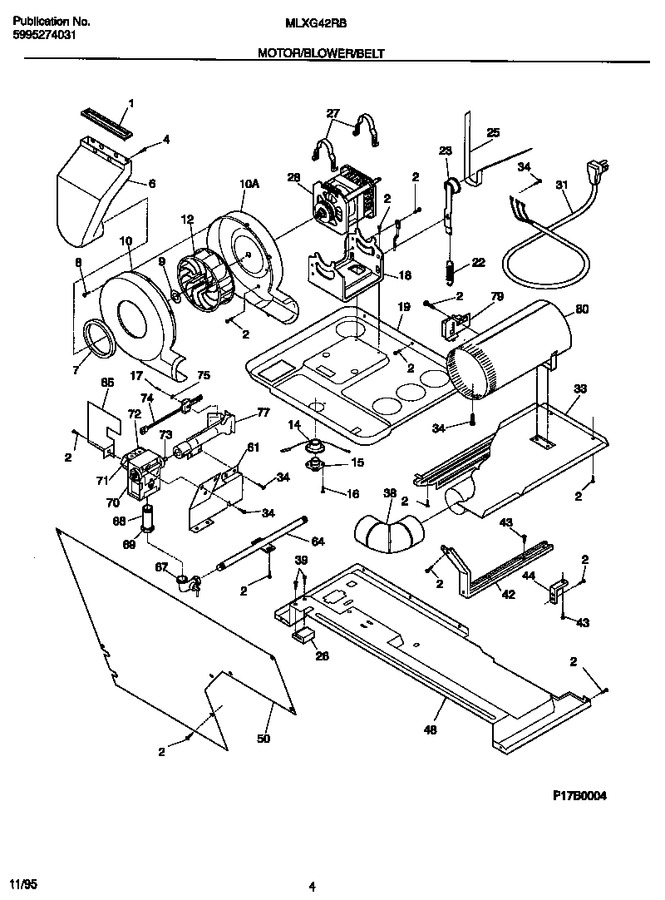

03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal-air Duct				$ 16.30
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
4	131362400		Fastener				$ 9.41
6	5304521121		Duct-air, 6   (Replaces: 131417800)				$ 118.56
7	3204490		Seal-blower Housing				$ 14.18
8	3205245		Screw-blower Hsg, Pph Ab St/z/ch, 6-18 X .60		Appelez-nous	-
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	5303271179		Housing-blower Rear		Appelez-nous	-
10	131287600		Housing-blower, Front		Appelez-nous	-
12	131476300		Wheel-blower			Immediately	$ 47.00
14	5303207400		Heater-thermostat		Appelez-nous	-
15	131322600		Thermostat-control, 15				$ 74.52
16	3204308		Screw-thermostat, Pph Cup Pt, 8-18 X .625		Appelez-nous	-
17	3281178		Screw-ignitor, Pth B St Head, 8-18 X .812		Appelez-nous	-
18	131367101		Cradle, Motor		Appelez-nous	-
19	131363901		Pan-motor Cradle		Appelez-nous	-
22	3205241		Spring-idler				$ 75.83
23	5304507499		Arm-idler Assy   (Replaces: 131434700)			Immediately	$ 42.66
25	137292700		Belt-dryer   (Replaces: 5303283287)			Immediately	$ 9.34
26	5303212870		Block-support		Appelez-nous	-
27	5303212834		Clamp, Motor				$ 3.78
28	53032332588		Motor - Dryer		Appelez-nous	-
31	5303207402		Cord-power		Appelez-nous	-
33	131112011		Shield-access		Appelez-nous	-
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
38	3204320		Elbow-exhaust		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
42	3204324		Bracket-marriage		Appelez-nous	-
43	3204325		Screw-bracket		Appelez-nous	-
44	3204326		Bracket-external				$ 43.24
48	131379201		Pan-bottom		Appelez-nous	-
50	3204329		Cover-safety				$ 40.16
61	5303207404		Bracket-gas Valve		Appelez-nous	-
64	5303207405		Pipe		Appelez-nous	-
67	131498500		Valve-shut Off		Appelez-nous	-
68	5362791200		Tail Piece				$ 52.98
69	08015194		Nut-union, Hex		Appelez-nous	-
70	5303207409		Valve Gas				$ 433.76
71	5300622602		Coil-secondary		Appelez-nous	-
72	5308015680		Coil-booster		Appelez-nous	-
73	5303211036		Orifice-natural Gas		Appelez-nous	-
74	5303937186		Ignitor Assy   (Replaces: 5303281151)				$ 80.61
75	3201209		Washer-access Cover		Appelez-nous	-
77	5303207412		Burner Assy.		Appelez-nous	-
79	5303281135		Sensor			Immediately	$ 102.06
80	5303207413		Tube-burner		Appelez-nous	-
85	5303212889		Shield-heat		Appelez-nous	-
*87323	08015112		Cap-pipe		Appelez-nous	-
*87324	134154100		Screw-ground Cab, Hex Washer Head, 10-32t X 0.375, Serr   (Replaces: 131301100)				$ 13.46
*87325	131453000		Bushing-snap				$ 10.63
*87326	PCK3100		Lp Gas Conv Kit, Natural To Lp   (Replaces: 5303937053)				$ 60.25
*87327	5303937054		Lp Gas Conv Kit, Lp To Natural				$ 94.24
