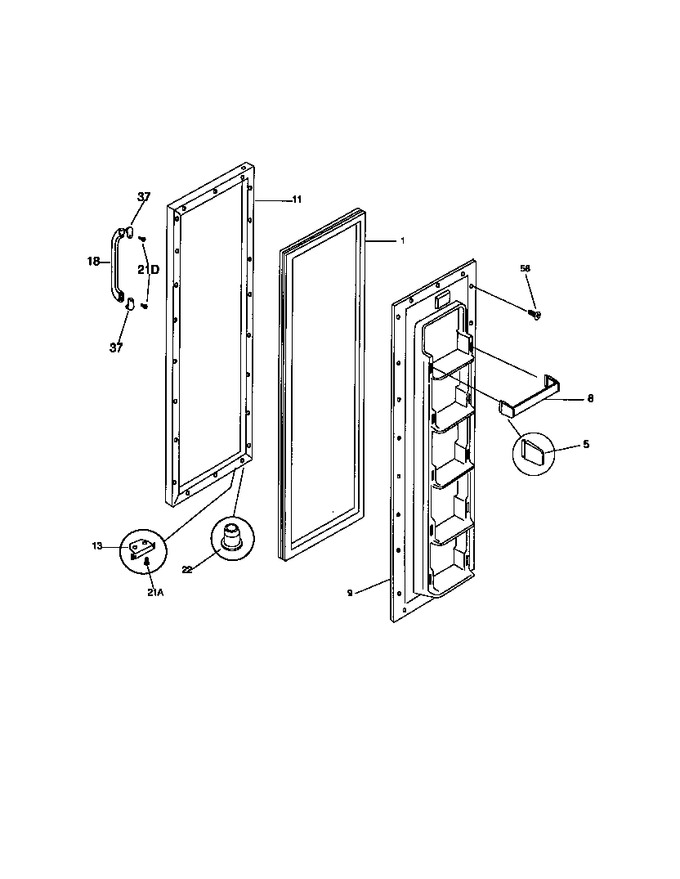

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734313		Gasket-frzr Door, White, Magnetic				$ 244.78
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
8	215476600		Rack-door, W/end Caps		Appelez-nous	-
9	215008201		Panel, Inner Door, Frzr		Appelez-nous	-
11	215520101		Panel, Frzr Door, White, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	215339601		Handle-door, White		Appelez-nous	-
21	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
37	215361401		Trim, Handle, White		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*37480	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*37481	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
