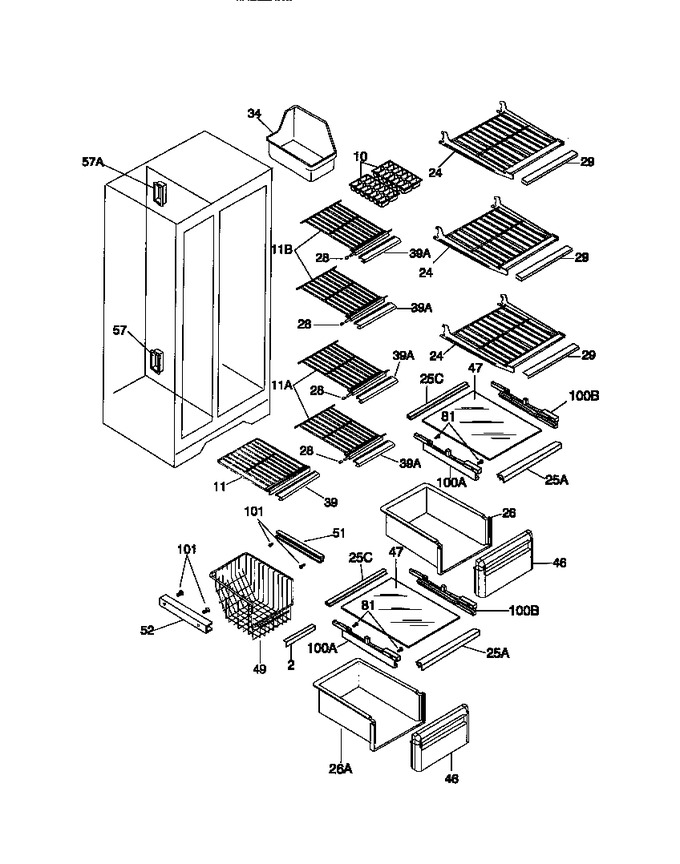

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303289504		Shelf-freezer, Fixed Wire		Appelez-nous	-
11	218390202		Shelf-freezer, Fixed, Wire		Appelez-nous	-
11	218298001		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
24	5303296674		Shelf-cantilever,refr,(3)		Appelez-nous	-
25	218015302		Trim-storage Pan Cvr, Snap-on, Front		Appelez-nous	-
25	218015402		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
26	5303289500		Pan-storage,upper				$ 174.74
26	5303289501		Pan-storage,lower				$ 164.85
28	3201150		End Cap-shelf,protector				$ 4.57
29	215217559		Trim-refr Shelf,(3)		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
39	215217543		Trim-frzr Shelf		Appelez-nous	-
39	215217558		Trim-frzr Shelf		Appelez-nous	-
46	215042024		Front, Storage Pan, Upper & Lower, (2)		Appelez-nous	-
47	215723552		Insert-pan Cover, Glass, Clear				$ 77.10
49	5303289521		Basket-sliding				$ 239.40
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
57	5303289064		Ferrule-air		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
100	218015501		Support-pan Cover, Lh				$ 37.26
100	218015601		Support-pan Cover, Rh				$ 55.18
101	5304455650		Screw-basket Hanger, Hex Washer Head, 8-18ab X 3/4   (Replaces: 215005000)				$ 14.18
*37488	215339900		Clip, Cantilevr Shlf				$ 5.83
