SELECT A DIAGRAM

01 - Cover


02 - Freezer Door

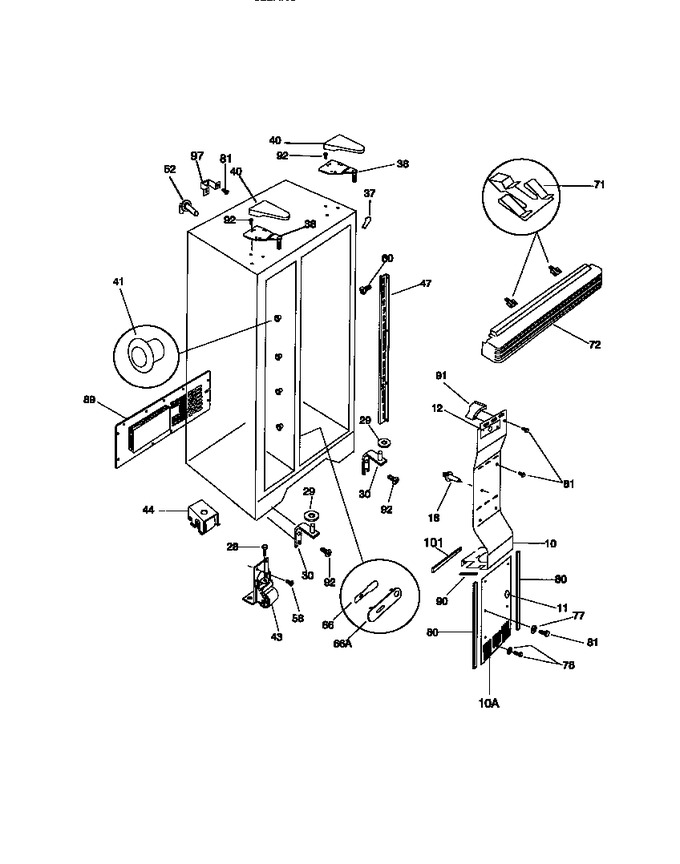

03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215637400		Cover-evap Coil,lower		Appelez-nous	-
10	215637601		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303291143		Plug-decorative, I.m. Inlet Tube, & Elec Conn		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
37	5303202336		Trim-cabinet Corner, White		Appelez-nous	-
38	218215201		Bracket, Upper Hinge, W/closer, White		Appelez-nous	-
40	5303288945		Cover-upper Hinge, White		Appelez-nous	-
44	215163900		Roller Assy, Rear,(2)		Appelez-nous	-
47	5303288974		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.00   (Replaces: 5303207328)				$ 12.76
66	218171301		Cover-meat Kpr Dmpr				$ 45.09
66	215050201		Damper-meat Keeper		Appelez-nous	-
72	5303289507		Grille/kickplate, White		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
80	218249801		Seal-coil Cover,(2)		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
89	215176300		Cover-machine Compt		Appelez-nous	-
90	215022602		Seal-foam		Appelez-nous	-
91	215177600		Deflector-air, Air Duct Cover, W/seal		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
97	5303289299		Bracket-im Plug		Appelez-nous	-
101	215305702		Seal-foam		Appelez-nous	-
*37484	5308009617		Washer, Ext Tooth Lock, No. 10		Appelez-nous	-
*37485	5308016571		Plug-button, Cabinet Liner				$ 4.79
*37487	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
18A	5303289043		Support-air Duct Cvr, 2.55`` Long		Appelez-nous	-
18B	5303289044		Support-air Duct Cvr, 1.83`` Long (not Illustrated)		Appelez-nous	-
29A	215003200		Washer, .40x.63x .16,nylon				$ 54.86
29B	215314300		Washer, .40 X .75 X .06, Nylon		Appelez-nous	-
30A	5303289060		Bracket-lower Hinge, W/hinge Pin		Appelez-nous	-
30B	5303289290		Tapping Plate, Lh (not Illustrated)		Appelez-nous	-
30C	5303289291		Tapping Plate, Rh (not Illustrated)		Appelez-nous	-
41A	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
41B	5304500407		Grommet, Shelf Mtg, Lh (not Illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
43A	5303289059		Roller Assy,front,(2)		Appelez-nous	-
43B	5308017044		Screw-roller Mtg, Spcl Ind Hex Hd, 5/16-18(23) X 7/8 (no				$ 6.34
52A	215454600		Tube-water Inlet				$ 81.11
52B	215058000		Plug-wtr Inlet Tube (not Illustrated)				$ 2.73
71A	215003300		Clip-grille,(2)				$ 20.00
71B	215608400		Screw-clip/grille, Pan Head, 6-20ab X 1/4 (not Illustrat		Appelez-nous	-
