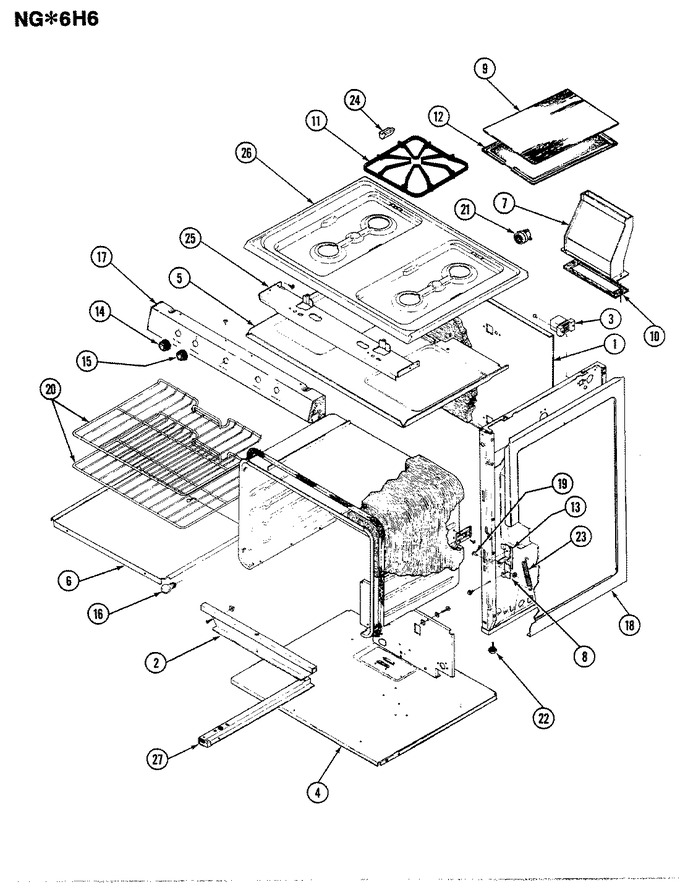

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Controls
04 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F064-20 | Back, Main | 1 |
|
- | ||||
| 2 | 3601F018-23 | Baffle | 1 |
|
- | ||||
| 2 | 4003W002-20 | Base Assy. Range | 1 |
|
- | ||||
| 3 | 7401P006-60 | Block, Disconnect | 1 |
|
- | ||||
| 3 | 7401P010-60 | Block, Upper Discont | 1 |
|
- | ||||
| 3 | 7401P013-60 | Block, Disconnect | 1 |
|
- | ||||
| 4 | 4011F100-51 | Bottom, Broiler | 1 |
|
- | ||||
| 5 | 4011F135-80 | Box, Burner |
|
- | |||||
| 6 | 4006F005-80 | Box, Disconnect | 1 |
|
- | ||||
| 6 | 2205F009-24 | Bottom, Oven | 1 |
|
- | ||||
| 6 | 2205F009-16 | Bottom, Oven | 1 |
|
- | ||||
| 7 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 7 | 3802F038-23 | Brace | 1 |
|
- | ||||
| 7 | 3801F053-34 | Bracket | 1 |
|
- | ||||
| 7 | 4006W017-20 | Flue Assy. | 1 |
|
- | ||||
| 8 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 8 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 10 | 7201P006-60 | Gasket | 1 |
|
- | ||||
| 10 | 7201P012-60 | Gasket, Fiberglass | 1 |
|
- | ||||
| 11 | 2003W001-00 | Grate | 1 |
|
- | ||||
| 13 | 3418F031-34 | Hinge, Oven Door | 1 |
|
- | ||||
| 14 | 7711P364-60 | Knob, Thermostat | 1 |
|
- | ||||
| 15 | 7733P026-60 | Knob, Valve | 1 |
|
- | ||||
| 16 | 4396923 | Pan, Broil (Replaces: 3401F004-11) | 1 |
|
Immediately | $ 52.04 | |||
| 16 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 17 | 2616F052-84 | Panel, Manifold Almond |
|
- | |||||
| 18 | 2618F013-74 | Panel, Side Almond |
|
- | |||||
| 19 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 20 | 7801P013-60 | Rack, Oven | 1 |
|
- | ||||
| 21 | 7408P001-60 | Recept, Oven Light | 1 |
|
- | ||||
| 22 | 7101P029-60 | Screw, Special | 1 |
|
- | ||||
| 22 | 4016F002-80 | Side, Burner Box Right | 1 |
|
- | ||||
| 22 | 4016F006-80 | Side, Burner Box Left | 1 |
|
- | ||||
| 23 | 7803P003-60 | Spring | 1 |
|
- | ||||
| 24 | 8004P003-60 | Support | 1 |
|
- | ||||
| 25 | 3807F027-11 | Support, Oven Bottom | 1 |
|
- | ||||
| 25 | 3807F204-34 | Support, Top Pilot | 1 |
|
- | ||||
| 26 | 2001F007-04 | Top, Main |
|
- | |||||
| 27 | 2610F001-32 | Trim | 1 |
|
- | ||||
| 27 | 7402P011-60 | Cord, Power | 1 |
|
- | ||||
| 27 | 3404A001-51 | Track | 1 |
|
- | ||||
| 27 | 2610F002-32 | Trim | 1 |
|
- |
