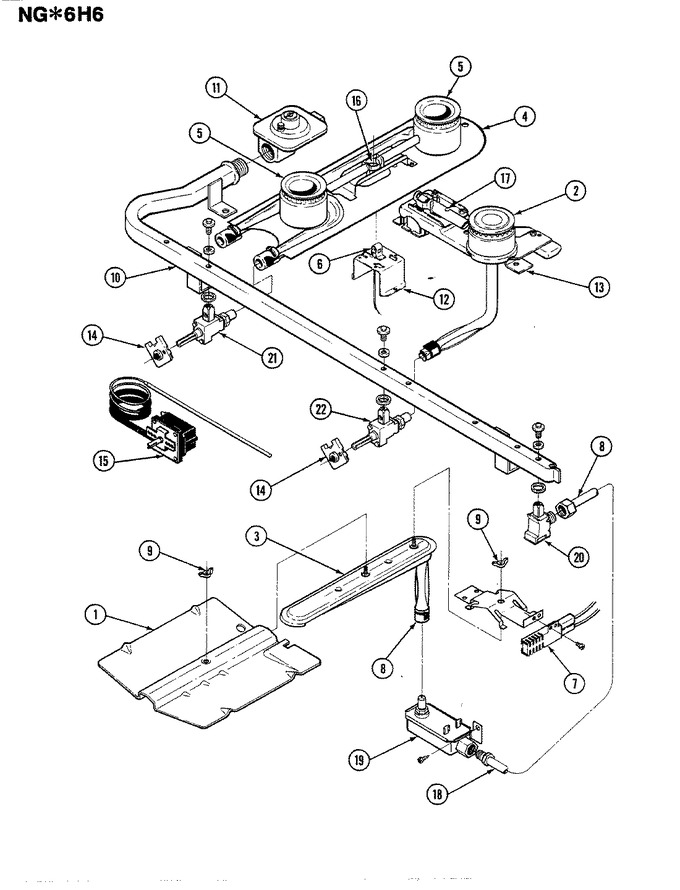

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Controls
04 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F101-45 | Baffle, Oven Burner | 1 |
|
- | ||||
| 3 | 7505P065-60 | Burner, Oven | 1 |
|
- | ||||
| 4 | 3412A004-23 | Uni-burner Assy | 1 |
|
- | ||||
| 5 | 7504P001-60 | Cap, Burner | 1 |
|
- | ||||
| 6 | 7432P015-60 | Igniter, Top Burner | 1 |
|
$ 53.77 | ||||
| 7 | 12400035 | Igniter, Bake (Replaces: 7432P051-60) | 1 |
|
Immediately | $ 60.44 | |||
| 8 | 7431P006-60 | Module, Spark |
|
- | |||||
| 8 | 3411F001-44 | Mixer, Air | 1 |
|
- | ||||
| 9 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 10 | 7513P052-60 | Pipe, Manifold | 1 |
|
- | ||||
| 11 | 7101P043-60 | Screw, Control Valve | 1 |
|
- | ||||
| 11 | 7510P002-60 | Regulator, Pressure | 1 |
|
- | ||||
| 13 | 3807F204-34 | Support, Top Pilot | 1 |
|
- | ||||
| 13 | 3807F112-34 | Support | 1 |
|
- | ||||
| 14 | WP7403P190-60 | Switch, Top Burner (Replaces: 7403P041-60) | 1 |
|
$ 118.82 | ||||
| 15 | 7515P019-60 | + Thermostat, Oven | 1 |
|
- | ||||
| 16 | 7506P006-60 | Tube, Flash | 1 |
|
- | ||||
| 18 | Y0936102 | 3/8 X 72 Tubing | 1 |
|
- | ||||
| 19 | 7501P015-60 | Valve, Oven (natural) | 1 |
|
- | ||||
| 20 | 7502P002-60 | Valve, Shut Off | 1 |
|
- | ||||
| 21 | 7502P009-60 | Valve, Burner | 1 |
|
- |
