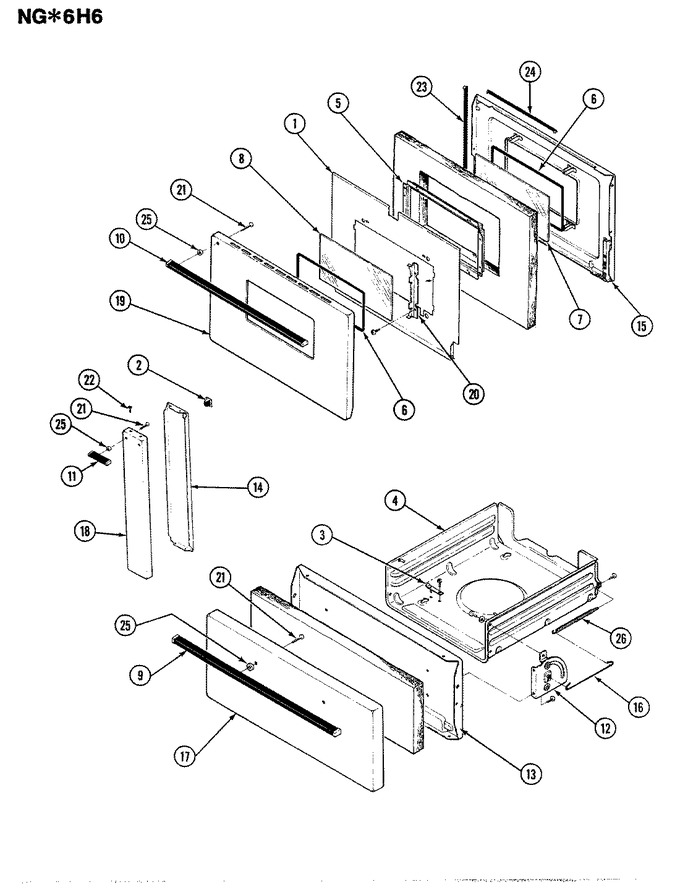

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F094-51		Baffle, Oven Door	1	Appelez-nous	-
2	8003P003-60		Bumper	1	Appelez-nous	-
3	WP71002097		Catch   (Replaces: 8024P002-60)	1			$ 11.12
3	8002P013-60		Catch, Female	1	Appelez-nous	-
3	8002P001-60		Catch	1	Appelez-nous	-
4	3407W009-11		Drawer, Broiler	1	Appelez-nous	-
5	3603F013-80		Frame, Window----na	1	Appelez-nous	-
6	7201P017-60		Gasket, Window	1			$ 52.69
7	7902P035-60		Glass, Door Inner	1	Appelez-nous	-
8	7902P051-60		Glass	1	Appelez-nous	-
9	7701P012-60		Handle, Drawer (chr)	1	Appelez-nous	-
10	7701P030-60		Handle, Door (chr)	1	Appelez-nous	-
11	7701P009-60		Handle, Compartment Door	1	Appelez-nous	-
12	7106P003-60		Hinge	1	Appelez-nous	-
12	3418A062-34		Hinge, Broiler (rt)	1	Appelez-nous	-
12	3418A063-34		Hinge, Broiler (lt)	1	Appelez-nous	-
12	7106P007-60		Hinge	1	Appelez-nous	-
12	3418F031-34		Hinge, Oven Door	1	Appelez-nous	-
13	2404F020-23		Lining, Broiler	1	Appelez-nous	-
14	2408F005-80		Lining, Compartment Door	1	Appelez-nous	-
15	2402W119-23		Lining, Oven Door	1	Appelez-nous	-
15	2402W119-16		Lining Assy, Ov Dr	1	Appelez-nous	-
16	7807P001-60		Link, Broiler	1	Appelez-nous	-
17	2403F011-74		Panel, Drawer (alm)		Appelez-nous	-
18	2409F007-74		Panel, Compartment Almond		Appelez-nous	-
19	2401F042-74		Panel, Door (alm)		Appelez-nous	-
20	3804F050-20		Retainer, Light Guard	1	Appelez-nous	-
21	WP3387230		10 X 3/4 Ph P H Ty B   (Replaces: 1986238)	1		Immediately	$ 7.69
22	7101P013-60		Screw, Special	1	Appelez-nous	-
23	7212P025-60		Seal, Oven Door	1	Appelez-nous	-
24	7212P003-60		Seal, Oven Door	1			$ 46.94
25	8010P002-60		Spacer, Handle	1	Appelez-nous	-
26	7803P003-60		Spring	1	Appelez-nous	-
26	7803P014-60		Spring	1	Appelez-nous	-
26	3420A035-34		Stop, Oven Door	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
