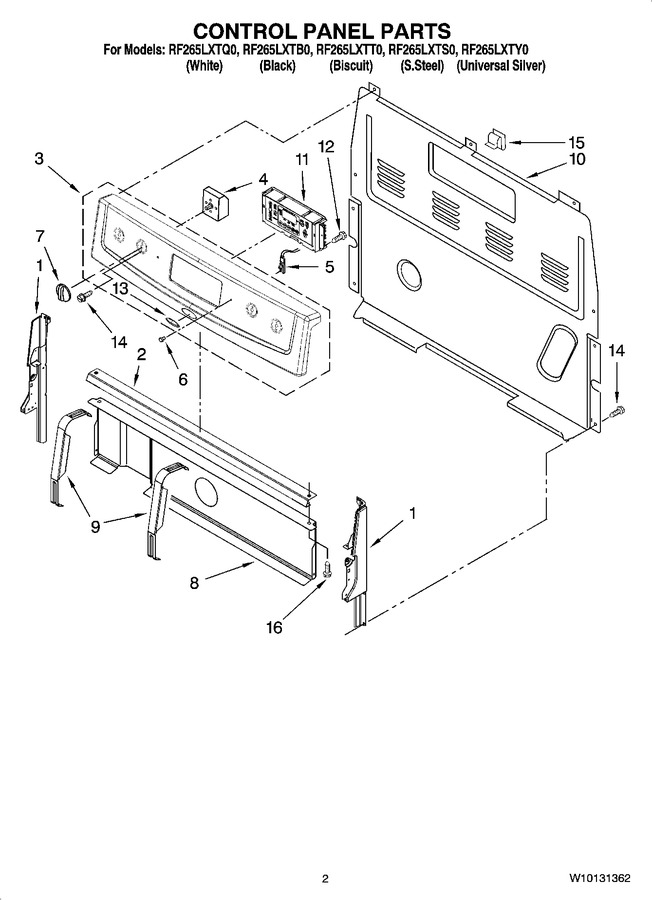

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10009090) |
|
$ 36.40 | |||||
| 1 | W11230612 | Endcap (biscuit, Rh) (Replaces: W10009070) |
|
- | |||||
| 1 | W10009060 | Endcap (biscuit, Lh) |
|
- | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10009040) |
|
$ 36.39 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10009050) |
|
$ 52.14 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10009080) |
|
$ 131.85 | |||||
| 2 | 9762095 | Bracket, Console |
|
- | |||||
| 3 | W10117555 | Panel, Control (stainless Steel) |
|
- | |||||
| 3 | W10117554 | Panel, Control (black) |
|
- | |||||
| 3 | W10117552 | Panel, Control (white) |
|
- | |||||
| 3 | W10117553 | Panel, Control (biscuit) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 47.15 | ||||
| 4 | WP9758060 | Switch, Infinite (right Front (dual)) (Replaces: 9758060) |
|
Immediately | $ 74.82 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 77.68 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WP9761962 | Knob, Infinite (4) (white) (Replaces: 9761962) |
|
Immediately | $ 17.70 | ||||
| 7 | WP9761964 | Knob, Infinite (4) (black) (Replaces: 9761964) |
|
Immediately | $ 19.12 | ||||
| 7 | WP9761963 | Knob, Infinite (4) (biscuit) (Replaces: 9761963) |
|
$ 17.81 | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | 9762078 | Brkt, Mntg Eoc |
|
$ 38.13 | |||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10114378 | Control, Range (biscuit) |
|
- | |||||
| 11 | W10114377 | Control, Range (black) |
|
- | |||||
| 11 | W10114376 | Control, Range (white) |
|
$ 378.55 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 13 | 9757609 | Nameplate |
|
$ 33.27 | |||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 15 | WP8273564 | Clip, Cover (Replaces: 8273564) |
|
$ 10.85 | |||||
| 16 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 16 | 3196166 | Screw (white) |
|
$ 6.31 |
