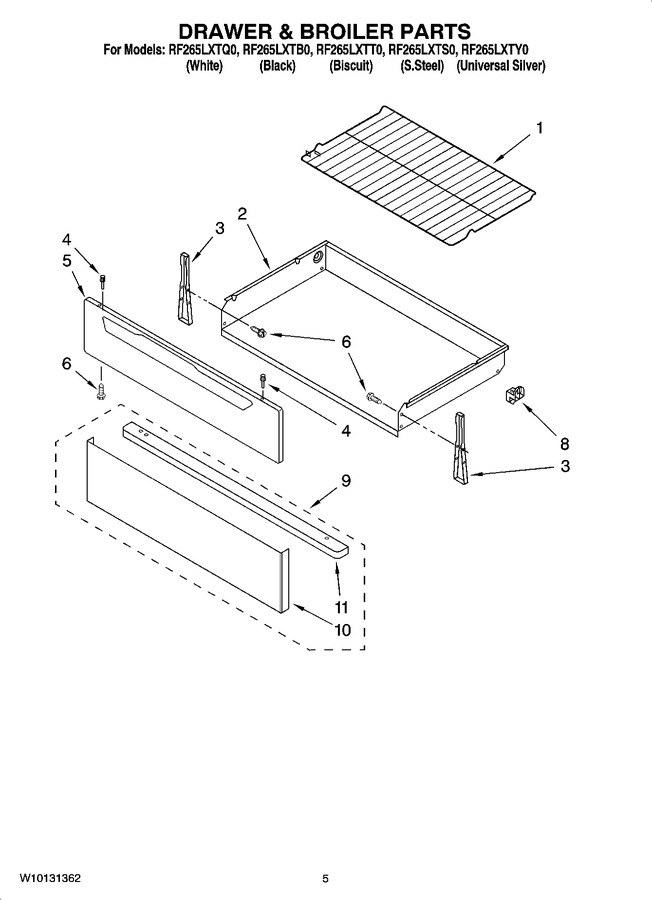

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 42.16
2	9761030		Drawer, Storage		Appelez-nous	-
3	W10838990		Brkt-mntg, Drawer   (Replaces: 9758200)			Immediately	$ 76.24
4	3196815		Rivet, Push (2) (almond)		Appelez-nous	-
4	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 9.49
4	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 9.60
5	W11230476		Panel, Drawer Frnt (biscuit)   (Replaces: 8272501)				$ 176.59
5	W11219377		Panel, Drawer Frnt (white)   (Replaces: 8053339)				$ 182.21
5	W11230488		Panel, Drawer Frnt (black)   (Replaces: 8053341)				$ 182.09
6	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
8	WP8053334		Glide, Drawer (2)   (Replaces: 8053334)			Immediately	$ 7.06
9	3183107		Knob		Appelez-nous	-
10	9755798		Panel Stainless		Appelez-nous	-
11	9757237		Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
