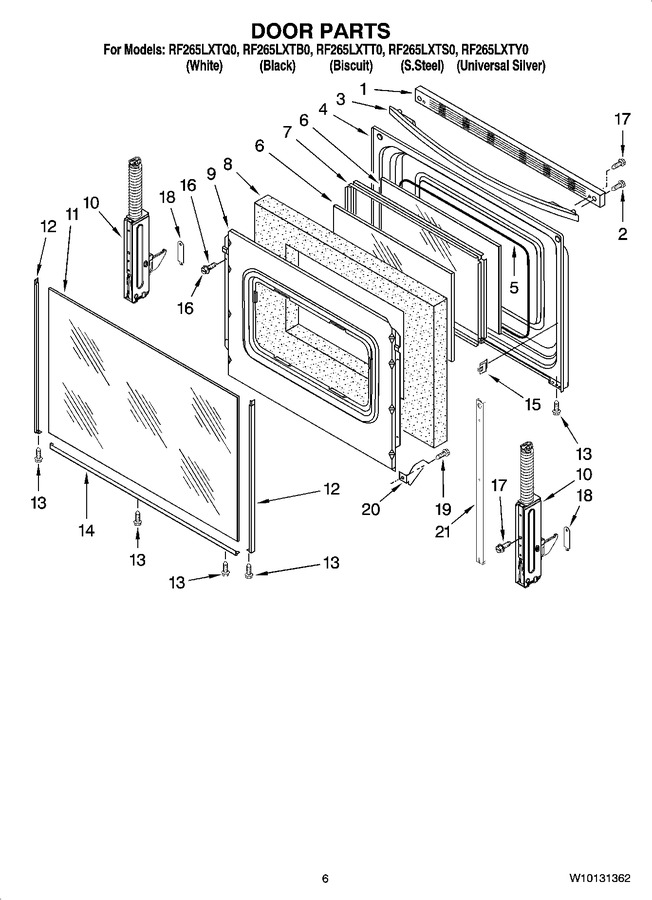

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9761975 | Trim, Top (white) |
|
$ 82.31 | |||||
| 1 | WP9762391 | Trim, Top (stainless Model) (Replaces: 9762394) |
|
$ 179.12 | |||||
| 1 | WP9762391 | Trim, Top (black) (Replaces: 9762391) |
|
$ 179.12 | |||||
| 1 | 9761976 | Trim, Top (biscuit) |
|
- | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 7.82 | ||||
| 3 | 9761983 | Handle, Door (black) |
|
$ 116.42 | |||||
| 3 | 9761982 | Handle, Door (white) |
|
$ 125.85 | |||||
| 3 | 9761984 | Handle, Door (biscuit) |
|
- | |||||
| 3 | 9761985 | Handle, Door (universal Silver) |
|
- | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 319.62 | ||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 160.45 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 76.37 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 86.89 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 199.17 | |||||
| 10 | W10347464 | Hinge, Door (2) (stainless Model) (Replaces: 9761496) |
|
Immediately | $ 114.84 | ||||
| 10 | W10347466 | Hinge, Door (2) (white,black,bisc.) (Replaces: 9761493) |
|
Immediately | $ 188.43 | ||||
| 11 | WPW10118454 | Glass, Outer (white) (Replaces: W10075980) |
|
$ 278.50 | |||||
| 11 | W10010790 | Glass, Outer (stainless Steel) |
|
- | |||||
| 11 | W10076000 | Glass, Outer (biscuit) |
|
- | |||||
| 11 | WPW10118455 | Glass, Outer (black) (Replaces: W10075990) |
|
Immediately | $ 285.17 | ||||
| 12 | WP8523167 | Trim, Side (biscuit Right Hand) (Replaces: 8523167) |
|
$ 102.09 | |||||
| 12 | WP8523166 | Trim, Side (white Left Hand) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12 | WP8523172 | Trim, Side (white Right Hand) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 48.39 | ||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | WP8523173 | Trim, Side (biscuit Left Hand) (Replaces: 8523173) |
|
$ 105.89 | |||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 14 | WP8523178 | Trim, Lower (biscuit) (Replaces: 8523178) |
|
$ 138.66 | |||||
| 14 | WP8523180 | Trim, Lower (stainless Model) (Replaces: 8523180) |
|
$ 144.86 | |||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 52.61 | ||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 142.16 | ||||
| 15 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 16 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 18 | 9761517 | Clip,dr Mntg(2) |
|
$ 41.24 | |||||
| 19 | WP3196175 | Screw (Replaces: 3196165) |
|
$ 6.47 | |||||
| 20 | 3196794 | Bracket, Window(2) |
|
$ 24.34 | |||||
| 21 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 23.72 | ||||
| NI | 242830 | Wire, Brown 14 Ga. 200 C |
|
- | |||||
| NI | 242823 | Wire, Green 14 Ga. 150 C |
|
- | |||||
| NI | 242824 | Wire, Orange 14 Ga. 150 C |
|
- | |||||
| NI | 242825 | Wire, Red 14 Ga. 150 C |
|
- | |||||
| NI | 242831 | Wire, Red 14 Ga. 200 C |
|
$ 342.23 | |||||
| NI | Y87225 | Barrier So |
|
- | |||||
| NI | 799832 | Kit, Porcelain Repair (white) |
|
- | |||||
| NI | 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | ||||
| NI | 261582 | Grease |
|
- | |||||
| NI | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| NI | 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 23.81 | ||||
| NI | 511873 | Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.) |
|
$ 44.36 | |||||
| NI | 350930 | Paint, Pressurized Spray (12 Oz.) ( White) |
|
Immediately | $ 34.39 | ||||
| NI | 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | ||||
| NI | Y206922 | Paint, Pressurized Spray (12 Oz.) (primer (white)) |
|
- | |||||
| NI | 799344 | Paint, Bulk (1 Qt.) (white (uncut)) |
|
$ 237.46 | |||||
| NI | 4392900 | Paint, Bulk (1 Qt.) (biscuit (uncut) |
|
- | |||||
| NI | W10269453 | Wraper-cab |
|
$ 117.00 | |||||
| NI | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| NI | 3184478 | Cleaner, Glass |
|
- | |||||
| NI | 832956 | Module-spk |
|
- | |||||
| NI | W11447673 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 28.64 | ||||
| NI | W10115055 | Harness, Wire (cooktp Lft Dual) |
|
- | |||||
| NI | W10114894 | Harness, Wire (cooktop Right) |
|
- | |||||
| NI | 9762951 | Harness, Wire (main) |
|
- | |||||
| NI | 9762428 | Harness, Wire (sensor/dr Switch) |
|
- | |||||
| NI | 3184020 | Wire, Ground (Replaces: 8523279) |
|
$ 74.50 | |||||
| NI | 313660 | Clip, Ground Wire |
|
- | |||||
| NI | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.04 | |||||
| NI | W11244557 | Screw, Grnd Wire (Replaces: 3196173) |
|
$ 12.25 | |||||
| NI | 4392901 | Paint, Pressurized Spray (12 Oz) (biscuit) |
|
- | |||||
| NI | 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 11.07 | ||||
| NI | 242828 | Wire, Black 12 Ga. 150 C |
|
- | |||||
| NI | 242821 | Wire, Blue 14 Ga. 150 C |
|
- | |||||
| NI | 242822 | Wire, Brown 14 Ga. 150 C |
|
- |
