SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door

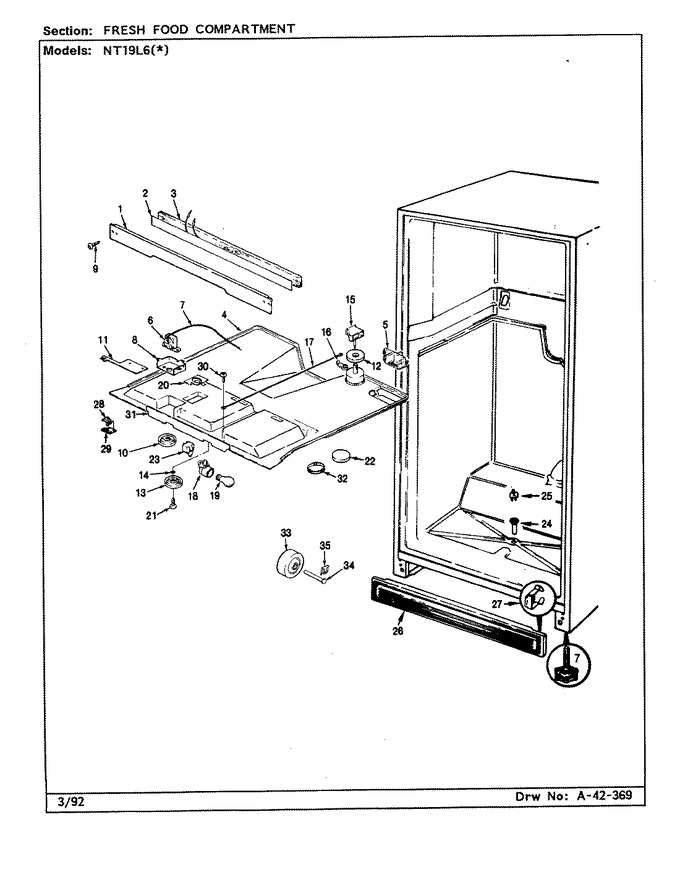

03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68434-2-AM		Divider, Mullion (alm)		Appelez-nous	-
2	68829-2		Heater		Appelez-nous	-
3	69146-1		Wire Harness Mullion		Appelez-nous	-
3	60140-2		Insulation		Appelez-nous	-
4	68531-2		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 68119-2)			Immediately	$ 233.80
6	406013-1		Screw		Appelez-nous	-
7	W11117769		Leg, Leveling   (Replaces: 68664-1)			Immediately	$ 16.61
8	60083-1		Cover, Temperature Control		Appelez-nous	-
8	28013-2		Rivet, Air Tunnel		Appelez-nous	-
8	405012-1		Screw		Appelez-nous	-
9	65275-54		Screw		Appelez-nous	-
10	68600-1		Knob, Control		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
11	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
12	68989-1		Seal, Top Tower		Appelez-nous	-
13	68600-2		Knob, Frz.		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	67558-2		Venturi Orifice		Appelez-nous	-
16	67636-1		Crank, Frz. Control		Appelez-nous	-
17	67499-3		Rod, Freezer Control		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
20	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
21	W11233072		Screw   (Replaces: 405016-103)			Immediately	$ 12.62
22	29675-28		Ground Wire		Appelez-nous	-
22	69037-1		Disc, Crank Cover		Appelez-nous	-
23	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
24	54531-8		Grommet		Appelez-nous	-
25	65039-1		Cap, Drain Tube		Appelez-nous	-
26	68980-2		Kickplate		Appelez-nous	-
27	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
27	60100-1		Clip, Kickplate				$ 5.85
28	60585-1		Switch, Mullion Heater		Appelez-nous	-
29	402013-1		Screw		Appelez-nous	-
29	60583-1		Bracket, Switch		Appelez-nous	-
30	420005-1		Washer, Control Rod		Appelez-nous	-
30	WP59002061		Screw   (Replaces: 65275-13)				$ 6.98
31	60571-78		Insert Temp Control		Appelez-nous	-
32	67493-1		Cover, Crank		Appelez-nous	-
33	29834-2		Wheel		Appelez-nous	-
34	29835-2		Pin, Wheel		Appelez-nous	-
35	60216-1		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
