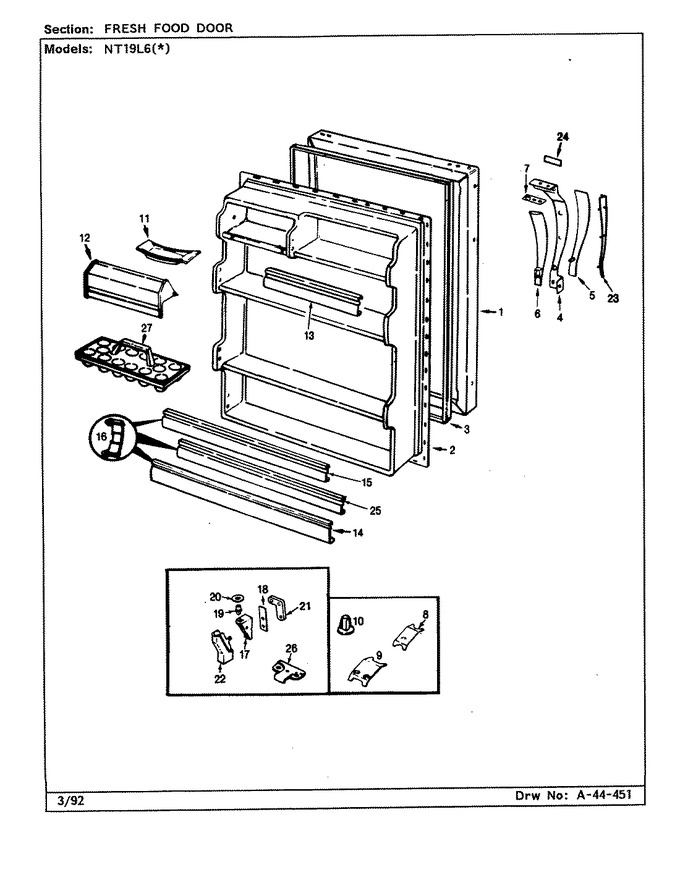

04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
1	68473-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	68887-1		Inner Panel		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
4	65275-57		Screw		Appelez-nous	-
4	66255-4		Door Handle		Appelez-nous	-
5	68016-2		Insert, Handle----na		Appelez-nous	-
6	60445-1		Insert		Appelez-nous	-
6	65275-53		Screw		Appelez-nous	-
7	68776-1		Shim Handle----na		Appelez-nous	-
8	56209-3		Clip, Stop Screw		Appelez-nous	-
9	60123-2		Clip, Stop Screw		Appelez-nous	-
10	55782-6		Plug Button (almond)		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	69058-1		Door, Dairy		Appelez-nous	-
13	WP61003045		Trim, Shelf   (Replaces: 68832-8)				$ 129.55
14	WP61003045		Shelf Trim   (Replaces: 68832-21)				$ 129.55
15	WP61003045		Shelf Trim   (Replaces: 68832-4)				$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
17	68975-2		Hinge, Lower		Appelez-nous	-
17	65275-51		Screw, Lower Hinge		Appelez-nous	-
18	69031-1		Shim		Appelez-nous	-
19	68977-1		Pin, Hinge		Appelez-nous	-
20	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
21	65275-59		Screw		Appelez-nous	-
21	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
22	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
23	68017-1		Insert, Vinyl		Appelez-nous	-
24	60603-24		Insert		Appelez-nous	-
25	WP61003045		Shelf Trim   (Replaces: 66636-39)				$ 129.55
26	65275-48		Screw		Appelez-nous	-
26	68987-1		Stop, Door		Appelez-nous	-
27	60066-1		Tray, Egg		Appelez-nous	-
