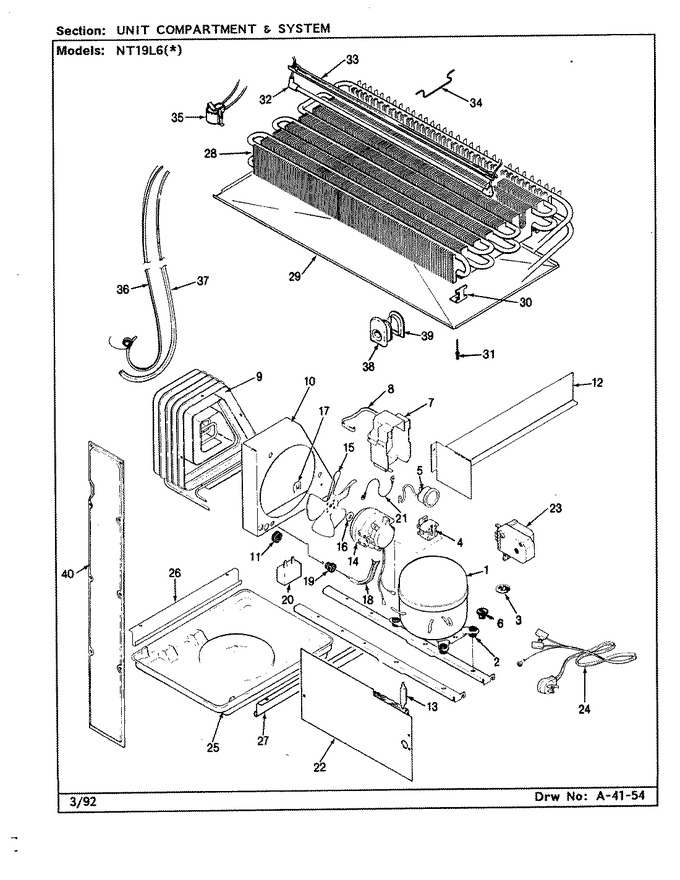

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10439652		Compressor   (Replaces: RA1032)				$ 379.03
2	17245-4		Grommet, Compressor		Appelez-nous	-
3	52778-2		Clip		Appelez-nous	-
3	WP681414		Screw, Compressor Rail   (Replaces: 414011-1)			Immediately	$ 7.07
4	WP10097202		Relay, Start   (Replaces: 68857-2)				$ 107.08
5	4388953		Overload   (Replaces: 69105-2)				$ 149.41
6	52656-2		Plug, Compressor		Appelez-nous	-
7	69754-1		Cover, Terminal		Appelez-nous	-
8	59596-1		Clip, Terminal Cover		Appelez-nous	-
9	RA43871-1		Condenser		Appelez-nous	-
9	60408-2		U-nut, Condenser		Appelez-nous	-
10	66228-1		Shroud, Condenser		Appelez-nous	-
11	53351-1		Grommet, Condenser Tubing		Appelez-nous	-
11	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
12	66493-2		Baffle		Appelez-nous	-
13	WPW10143759		Drier   (Replaces: 13900)			Immediately	$ 27.70
14	833697		Motor, Condenser Fan   (Replaces: 67560-7)			Immediately	$ 79.34
14	65275-33		Screw		Appelez-nous	-
15	WP12587601		Blade, Condenser Fan   (Replaces: 60485-1)				$ 114.00
16	19913-4		Washer		Appelez-nous	-
17	WP486692		Clip, Fan Blade   (Replaces: 19914)				$ 7.04
18	66225-1		Bracket, Fan Motor		Appelez-nous	-
19	56933-1		Grommet, Bracket		Appelez-nous	-
20	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
20	WP65889-4		Capacitor, Run   (Replaces: 65889-4)			Immediately	$ 55.03
21	29675-3		Ground Wire		Appelez-nous	-
22	66338-2		Cover, Unit Compartment		Appelez-nous	-
22	WP488729		Screw   (Replaces: 9986-45)			Immediately	$ 7.01
23	405007-1		Screw		Appelez-nous	-
23	WP4391974		Timer, Defrost   (Replaces: 66556-2)			Immediately	$ 171.43
24	52890-2		Cord, Power		Appelez-nous	-
25	68236-1		Pan, Drain				$ 89.75
26	60555-1		Rail, Drain Pan (rt)		Appelez-nous	-
27	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
27	60555-2		Rail, Drain Pan (lt)		Appelez-nous	-
28	RA43620-11		Evaporator		Appelez-nous	-
29	60101-8		Tray, Drip		Appelez-nous	-
30	60108-2		Bracket, Evaporator		Appelez-nous	-
31	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
32	WP60106-35		Heater, Defrost   (Replaces: 60106-35)			Immediately	$ 99.32
33	60109-5		Shield, Defrost Heater		Appelez-nous	-
34	60263-1		Clip, Defrost Heater		Appelez-nous	-
35	WP52085-28		Thermostat, Defrost   (Replaces: 52085-28)				$ 107.65
36	65013-23		Heat Exchanger		Appelez-nous	-
37	WP2205813		Wire Tie   (Replaces: 66223-1)				$ 6.95
37	65398-1		Cover, Heat Exchanger		Appelez-nous	-
38	60068-1		Grommet, Tube Entry		Appelez-nous	-
39	60069-1		Retainer, Entry Grommet		Appelez-nous	-
39	60177-2		Retainer, Main Wire Harness		Appelez-nous	-
39	69161-1		Wire Harness, Main		Appelez-nous	-
40	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
40	60110-2		Cover, Wire Harness		Appelez-nous	-
41	107099-4		Manual, Use & Care		Appelez-nous	-
