SELECT A DIAGRAM

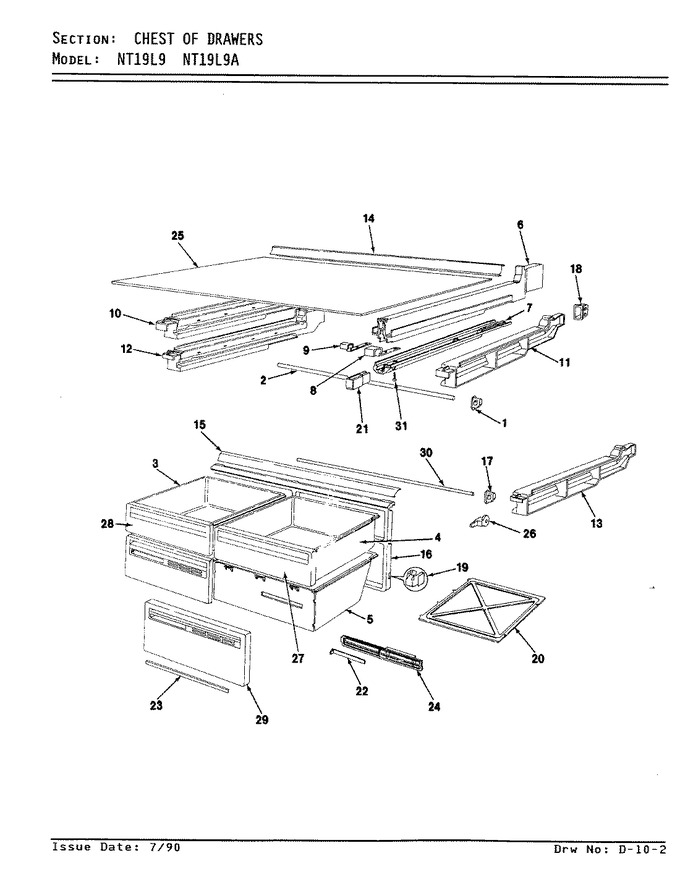

01 - Chest Of Drawers


02 - Doors


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67205-1		Cup Shelf Support		Appelez-nous	-
2	67782-3		Rod, Crisper Shelf		Appelez-nous	-
3	68513-3		Pan, Crisper		Appelez-nous	-
4	68513-6		Pan, Meat		Appelez-nous	-
5	68514-4		Pan, Crisper		Appelez-nous	-
6	68515-4		Rail Upper Center		Appelez-nous	-
7	68268-2		Rail, Bottom Center		Appelez-nous	-
8	68269-1		Bracket, Center Rail		Appelez-nous	-
9	68269-2		Bracket, Center Rail		Appelez-nous	-
10	68516-3		Rail, Side		Appelez-nous	-
11	68516-4		Rail, Side		Appelez-nous	-
12	68516-7		Rail, Side		Appelez-nous	-
13	68516-8		Rail, Side		Appelez-nous	-
14	68271-2		Trim, Rear Shelf		Appelez-nous	-
15	68787-8		Front Shelf Trim		Appelez-nous	-
16	68273-4		Front, Four Drawer		Appelez-nous	-
17	68274-1		Cup, Support Rod		Appelez-nous	-
18	68275-2		Cup, Rear Rail Support		Appelez-nous	-
19	68277-1		Clip, Front Bottom		Appelez-nous	-
20	68278-3		Cover, Pan		Appelez-nous	-
21	68280-2		Guide, Center Rail		Appelez-nous	-
22	68582-4		Control, Crisper Slide		Appelez-nous	-
23	68583-10		Handle Insert Trim		Appelez-nous	-
23	68583-12		Handle Insert Trim		Appelez-nous	-
23	68583-8		Trim, Handle Insert		Appelez-nous	-
24	68288-4		Retainer, Slide Control		Appelez-nous	-
25	68292-6		Cover, Glass		Appelez-nous	-
26	68339-1		Stud, Front Clip		Appelez-nous	-
27	68639-4		Front Assy.		Appelez-nous	-
28	68639-4		Front Assy.		Appelez-nous	-
29	68398-1		Screw, Anchor		Appelez-nous	-
29	68391-1		Cover, Air Inlet		Appelez-nous	-
29	68640-4		Crisper Assembly Front		Appelez-nous	-
30	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
30	68603-1		Rod, Front Support		Appelez-nous	-
31	68393-1		Pin, Frame Guide		Appelez-nous	-
31	405003-1		Screw		Appelez-nous	-
31	68394-1		Cup, Frame Mount		Appelez-nous	-
