SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Doors

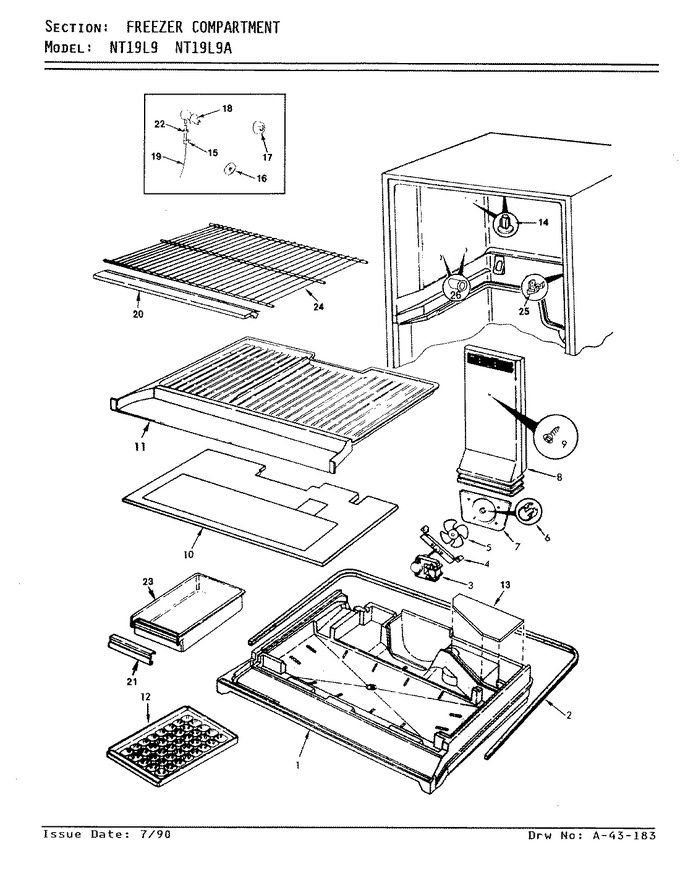

03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67519-3		Foam Tray		Appelez-nous	-
2	68866-6		Seal		Appelez-nous	-
2	67730-1		Seal, Front Corner		Appelez-nous	-
3	WP61004888		Motor, Evaporator Fan   (Replaces: 54482-10)			Immediately	$ 104.99
3	60565-1		Wire Harness		Appelez-nous	-
4	64856-1		Bracket, Fan Motor		Appelez-nous	-
4	400015-12		Screw		Appelez-nous	-
5	64359-1		Blade, Evaporator Fan		Appelez-nous	-
6	420092-900		Washer, Spring		Appelez-nous	-
7	60608-2		Orifice, Fan Blade		Appelez-nous	-
8	66325-34		Seal, Air Tunnel----na		Appelez-nous	-
8	68592-3		Tunnel, Air		Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
10	66403-2		Cover, Evaporator		Appelez-nous	-
11	66479-1		Bottom, Frz.		Appelez-nous	-
11	68946-2		Seal		Appelez-nous	-
12	WP61002140		Ice Cube Tray   (Replaces: 60112-1)				$ 18.23
13	66480-5		Cover, Plenum		Appelez-nous	-
13	66920-2		Plug Button		Appelez-nous	-
14	67557-1		Plug Button		Appelez-nous	-
15	53616-8		Clamp, Tube		Appelez-nous	-
15	WP33002917		Screw   (Replaces: 65275-1)			Immediately	$ 6.90
16	68187-1		Cap, Connector		Appelez-nous	-
17	68387-1		Cap, Grommet		Appelez-nous	-
18	68307-1		Grommet, Water Entry		Appelez-nous	-
19	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-7)				$ 11.19
20	68136-47		Shelf Trim		Appelez-nous	-
21	60132-100		Trim, Handle Pan		Appelez-nous	-
22	WPM0114003		Clamp, Spring   (Replaces: 60333-4)				$ 9.95
23	60653-1		Pan, Ice		Appelez-nous	-
24	60438-17		Shelf		Appelez-nous	-
25	66101-1		Stud, Shelf		Appelez-nous	-
26	60313-1		Cup, Shelf		Appelez-nous	-
26	400019-1		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
