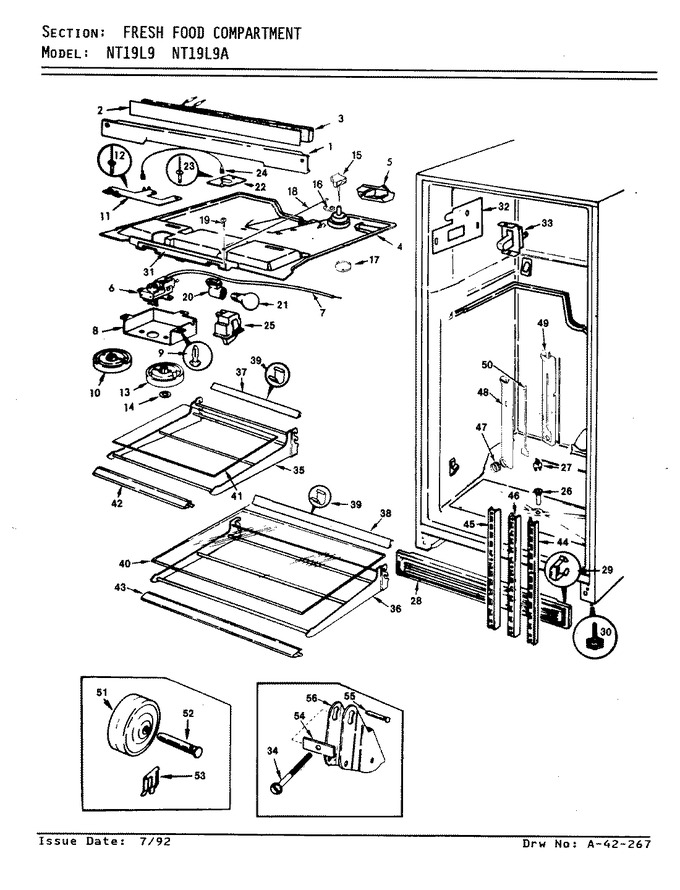

SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Doors


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65275-54		Screw		Appelez-nous	-
1	68434-2-AM		Divider, Mullion (alm)		Appelez-nous	-
2	68577-2		Insulation		Appelez-nous	-
2	68831-1		Heater Wire		Appelez-nous	-
3	60140-2		Insulation		Appelez-nous	-
3	68903-1		Wire Harness		Appelez-nous	-
4	68531-2		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 68119-2)			Immediately	$ 233.80
6	406013-1		Screw		Appelez-nous	-
7	4008-12		Plastic Tube		Appelez-nous	-
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68600-3		Knob, Temp. Control		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
13	68600-4		Knob		Appelez-nous	-
13	W11233072		Screw   (Replaces: 405016-103)			Immediately	$ 12.62
14	420092-900		Washer, Spring		Appelez-nous	-
15	67558-2		Venturi Orifice		Appelez-nous	-
16	67636-1		Crank, Frz. Control		Appelez-nous	-
17	67493-1		Cover, Crank		Appelez-nous	-
18	420005-1		Washer, Control Rod		Appelez-nous	-
18	67499-3		Rod, Freezer Control		Appelez-nous	-
19	WP59002061		Screw   (Replaces: 65275-13)				$ 6.98
20	60577-2		Socket, Light		Appelez-nous	-
21	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
22	60147-2		Bracket, Light Socket		Appelez-nous	-
23	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
24	29675-28		Ground Wire		Appelez-nous	-
25	54653-28		Cord, Switch/light		Appelez-nous	-
25	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
26	54531-8		Grommet		Appelez-nous	-
27	65039-1		Cap, Drain Tube		Appelez-nous	-
28	60138-7		Kickplate		Appelez-nous	-
29	60100-1		Clip, Kickplate				$ 5.85
29	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
30	W11117769		Leg, Leveling   (Replaces: 68664-1)			Immediately	$ 16.61
31	60571-68		Insert, Control		Appelez-nous	-
32	402013-1		Screw		Appelez-nous	-
32	60583-1		Bracket, Switch		Appelez-nous	-
33	60585-1		Switch, Mullion Heater		Appelez-nous	-
34	406083-1		Screw, Wheel Adjustment		Appelez-nous	-
35	60570-13		Frame, Shelf		Appelez-nous	-
36	60570-25		Frame, Shelf		Appelez-nous	-
37	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
38	65276-21		Trim, Shelf (full Rear)		Appelez-nous	-
39	66333-1		Clip, Shelf Trim		Appelez-nous	-
40	66604-22		Glass, Cantilever Shelf		Appelez-nous	-
41	66604-23		Glass, Cantilever Split Shelf		Appelez-nous	-
42	68136-45		Shelf Trim		Appelez-nous	-
43	68136-52		Trim, Shelf		Appelez-nous	-
44	68238-2		Rail, Cantilever Shelf		Appelez-nous	-
45	68238-1		Rail, Cantilever Shelf		Appelez-nous	-
46	68238-3		Rail, Cantilever Shelf		Appelez-nous	-
46	400037-28		Screw		Appelez-nous	-
47	68282-1		Bellows, Air Tunnel		Appelez-nous	-
48	68285-3		Cover, Air Tunnel		Appelez-nous	-
49	68289-2		Insulation, Air Tunnel		Appelez-nous	-
50	68290-3		Damper, Air Tunnel		Appelez-nous	-
50	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
51	29834-2		Wheel		Appelez-nous	-
52	29835-2		Pin, Wheel		Appelez-nous	-
53	60216-1		Clip		Appelez-nous	-
54	59101-1		Tapping Plate, Wheel		Appelez-nous	-
55	64965-1		Pin, Wheel		Appelez-nous	-
56	67530-1		Bracket, Wheel		Appelez-nous	-
