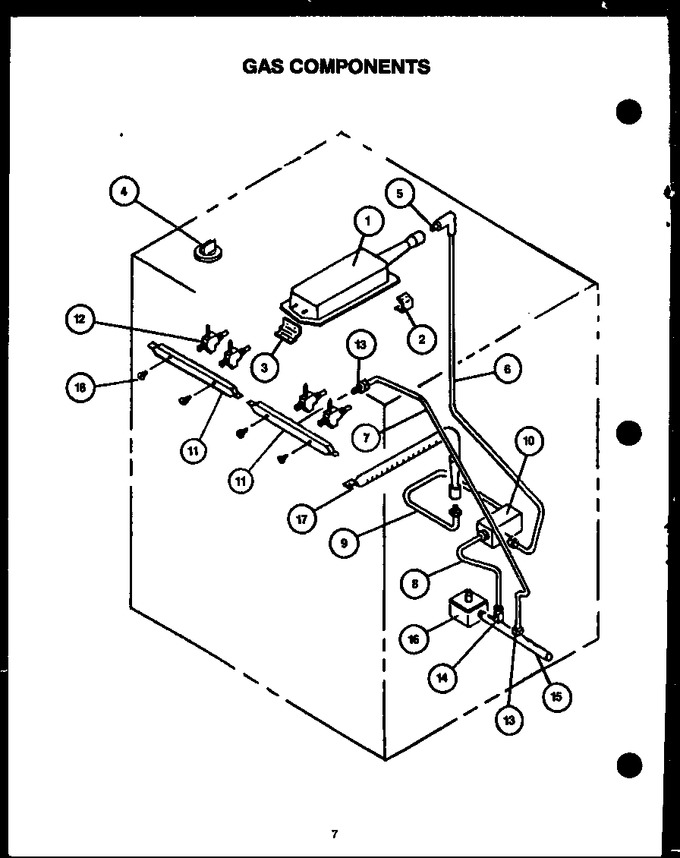

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0060691		Assy, Br. Burner		Appelez-nous	-
2	0063785		Bracket, Ignitor		Appelez-nous	-
3	Y0060687		Bracket, Mtg. Br. Support		Appelez-nous	-
4	0061474		Knob, Selector Assy		Appelez-nous	-
4	0061475		Knob, Top Burner		Appelez-nous	-
4	0302881		Knob, Oven Control		Appelez-nous	-
5	Y0063061		Orifice, No.58 Lp		Appelez-nous	-
5	Y0063060		Orifice Spud, Nat. Gas No.50		Appelez-nous	-
6	Y0300687		Kit, Orifice,tubing,brkt		Appelez-nous	-
7	0302509		Tubing, Inlet To Manifold, Lef		Appelez-nous	-
7	Y0300686		Tubing, Inlet To Manifold		Appelez-nous	-
8	Y0300684		Tubing, Inlet To Gas Valve		Appelez-nous	-
9	Y0300685		Tubing, Oven Burner		Appelez-nous	-
10	Y0300664		Valve, Gas		Appelez-nous	-
11	0300480		Manifold Pipe		Appelez-nous	-
12	0303658		Valve Top Burner		Appelez-nous	-
13	Y0301263		Fitting, 1/8``x 3/8``		Appelez-nous	-
14	Y0301361		Valve, Shut-off		Appelez-nous	-
15	0300479		Inlet Pipe		Appelez-nous	-
16	Y0063684		Regulator-5``/10`` Side Inlet		Appelez-nous	-
17	Y0063709		Oven Burner		Appelez-nous	-
18	Y0061441		Surface Valve Bolt& Gasket		Appelez-nous	-
NI	0063780		Shield, Ignitor		Appelez-nous	-
NI	Y0063757		Bracket, Igniter Mounting		Appelez-nous	-
NI	Y0097871		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
