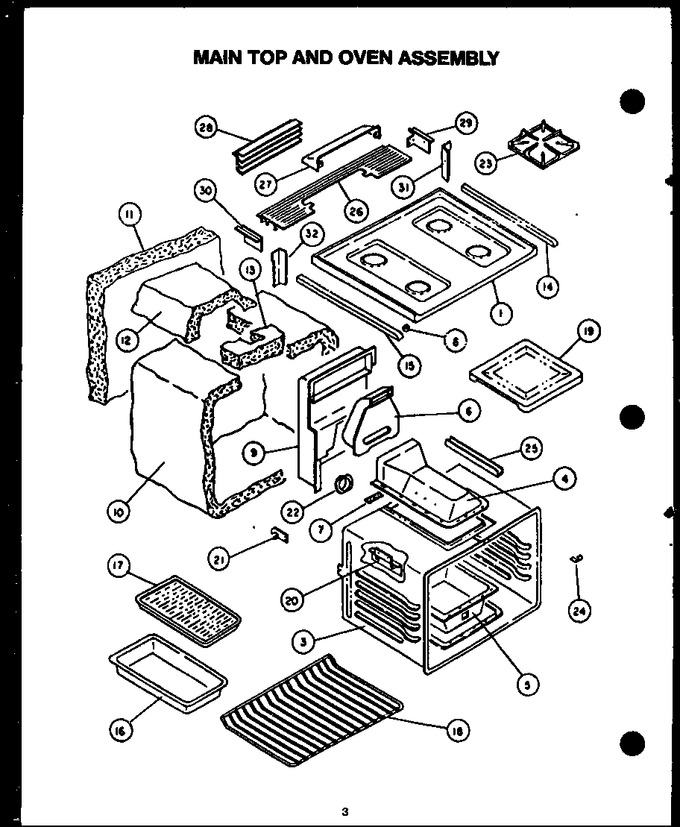

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	301358L		Main Top, Almond		Appelez-nous	-
1	Y00000000		See Note Main Top - Chrome		Appelez-nous	-
1	301358W		Main Top, White		Appelez-nous	-
3	Y00000000		See Note Oven Shell		Appelez-nous	-
4	Y0062892		Chamber, Broiler		Appelez-nous	-
5	Y0063802		Burner Box, Lower		Appelez-nous	-
6	0062770		Flue		Appelez-nous	-
7	0062754		Gasket, Oven Back		Appelez-nous	-
8	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
9	0063552		Flue, Dilution		Appelez-nous	-
10	Y0062947		Sub 41966, Insulation		Appelez-nous	-
11	Y0062945		Sub 41966, Insulation		Appelez-nous	-
12	Y0062946		Sub 41966, Insulation		Appelez-nous	-
13	Y0062944		Sub 41966, Insulation		Appelez-nous	-
14	Y0061499		Top Trim R.h		Appelez-nous	-
15	0061498		Trim Main Top, L.h., Bright Fi		Appelez-nous	-
16	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
17	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
18	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
19	Y0058625		Oven Bottom		Appelez-nous	-
20	0062792		Shield, Thermostat Bulb		Appelez-nous	-
21	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
22	Y0062799		Cup, Duct		Appelez-nous	-
23	Y0060529		Grate		Appelez-nous	-
24	0300278		Chip Cover		Appelez-nous	-
25	Y0063775		Channel, Br. Brnr.		Appelez-nous	-
26	302719B		Lo Backrail		Appelez-nous	-
27	302098B		Dilution Flue Cover		Appelez-nous	-
28	0302512		Trim Piece, Flue		Appelez-nous	-
29	0059425		End Cap R.h. Bk. Rail		Appelez-nous	-
30	Y0059424		End Cap, Lh, Bk.rail		Appelez-nous	-
31	Y0058912		Support, Backguard Rt		Appelez-nous	-
32	Y0058913		Support, Backguard Lt		Appelez-nous	-
NI	Y0061537		Shield		Appelez-nous	-
NI	Y0302383		Insulation, Control Panel		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	Y0302647		Insulation, Wrapper - 2`` X 20``		Appelez-nous	-
