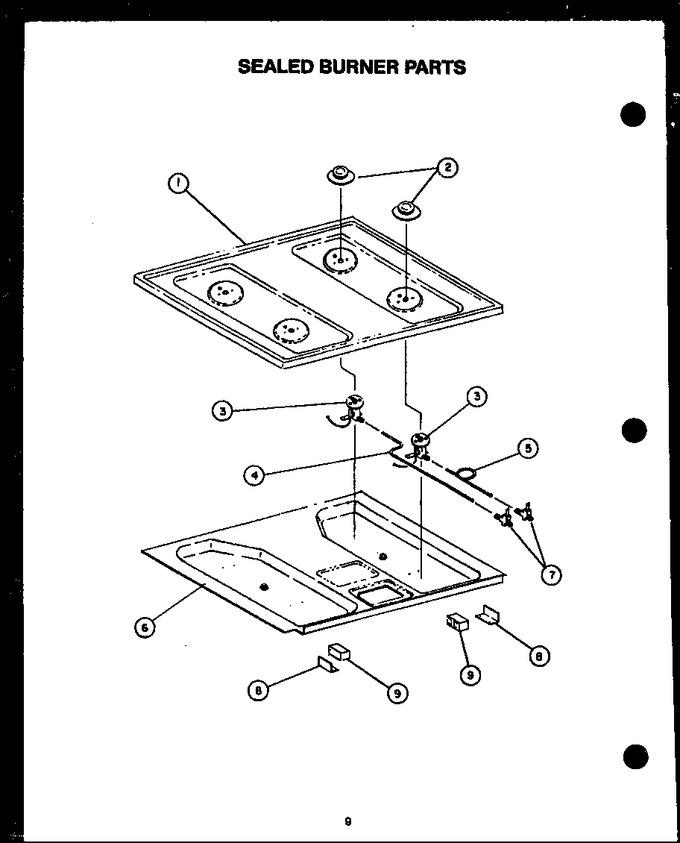

06 - Sealed Burner Parts
07 - Storage Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 301357K | Main Top, Brushed Chrome |
|
- | |||||
| 1 | 301358L | Main Top, Almond |
|
- | |||||
| 1 | 301358W | Main Top, White |
|
- | |||||
| 2 | WPY0307210 | Assy, Burner Cap Gas (Replaces: 303809B) |
|
$ 24.24 | |||||
| 3 | 0303125 | Venturi Assembly |
|
- | |||||
| 4 | Y0304106 | Tubing Valve To Rear Burner |
|
- | |||||
| 5 | Y0304107 | Tubing, 5/16``od, 10 Ft. Length |
|
- | |||||
| 6 | 302510E | Burner Box |
|
- | |||||
| 7 | 0303658 | Valve Top Burner |
|
- | |||||
| 8 | Y0065458 | Bracket, Spark Module Mtg. |
|
- | |||||
| 9 | Y0302477 | Spark Module |
|
- | |||||
| NI | Y0302405 | Orifice, Natural |
|
- | |||||
| NI | Y0303126 | Loxit Nut, 5/16`` Venturi Suppl |
|
- | |||||
| NI | Y0302619 | Orifice Spud |
|
- | |||||
| NI | 8169479 | Screw, No.8-18 X 1/2 P Flt Hd (Replaces: Y0041811) |
|
$ 6.26 | |||||
| NI | Y0302511 | Baffle, Burner Box |
|
- | |||||
| NI | Y0302478 | Plenum Seal 27`` |
|
- | |||||
| NI | 0062840 | Cover Plate Latch |
|
- |
