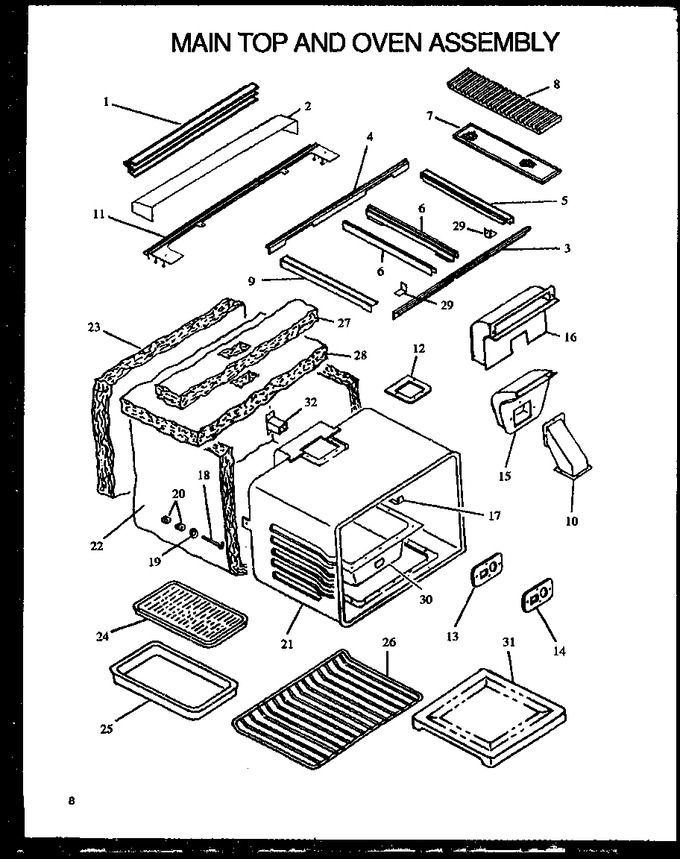

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0303156 | Trim, Flue Cover |
|
- | |||||
| 2 | 302098W | Cover, Dilution Flue |
|
- | |||||
| 2 | 302098B | Dilution Flue Cover |
|
- | |||||
| 3 | 0303146 | Frame Front, Main Top |
|
- | |||||
| 4 | 0303147 | Frame, Rear-electric (wht) |
|
- | |||||
| 5 | 0303148 | Frame Side, Lh |
|
- | |||||
| 6 | 0303145 | Frame, Center |
|
- | |||||
| 7 | Y0307363 | Filter (17.75``x4.0``x.375``) |
|
$ 16.98 | |||||
| 8 | 303141T | Cover, Vent (blk) |
|
- | |||||
| 9 | 0303149 | Frame, Side R.h. |
|
- | |||||
| 10 | Y0300082 | Oven Vent |
|
- | |||||
| 11 | Y0302741 | Backrail, Lo |
|
- | |||||
| 12 | Y0301559 | Gasket, Vent |
|
- | |||||
| 13 | Y0301736 | Gasket Plate |
|
- | |||||
| 14 | Y0301532 | Plate, Broil Burner |
|
- | |||||
| 15 | 300081E | Flue |
|
- | |||||
| 16 | 301707G | Dilution Flue, Black |
|
- | |||||
| 17 | Y0307380 | Cover, Chip |
|
- | |||||
| 18 | Y0091536 | Hook Bolt |
|
- | |||||
| 19 | Y0071876 | Washer |
|
- | |||||
| 20 | 0071881 | Sub 41847, Hex Nut |
|
- | |||||
| 21 | 303927E | Liner Oven |
|
- | |||||
| 22 | Y0301713 | Insulation, Wrapper |
|
- | |||||
| 23 | 0301712 | Insulation, Back |
|
- | |||||
| 24 | 4396923 | Grid, Broiler (cg) (Replaces: 304451E) |
|
Immediately | $ 52.04 | ||||
| 25 | 4396923 | Pan, Broiler (Replaces: 11161CG) |
|
Immediately | $ 52.04 | ||||
| 26 | WP314763J | Rack,oven (Replaces: Y067810K) |
|
$ 70.11 | |||||
| 27 | 0058319 | Insulation, Latch |
|
- | |||||
| 28 | 0301711 | Insulation, Top |
|
- | |||||
| 29 | Y0301154 | Bracket, Frame Trim |
|
- | |||||
| 30 | Y0063802 | Burner Box, Lower |
|
- | |||||
| 31 | 58625CG | Oven Bottom |
|
- | |||||
| 32 | Y0301551 | Wire Raceway |
|
- | |||||
| NI | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 12.65 | ||||
| NI | 8169479 | Screw, No.8-18 X 1/2 P Flt Hd (Replaces: Y0041811) |
|
$ 6.26 | |||||
| NI | Y0041807 | Screw No.8abx1/4 Ph Hd |
|
- | |||||
| NI | Y0097822 | Rivet, Pop |
|
- | |||||
| NI | WP90767 | Screw, Sm (Replaces: Y0041816) |
|
Immediately | $ 7.04 | ||||
| NI | Y0041813 | Screw Cabinet Trim |
|
- | |||||
| NI | Y0062445 | Spacer, Nylon (.14``) |
|
- | |||||
| NI | Y0302497 | Insulation, Cover Plate Latch |
|
- | |||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 |
