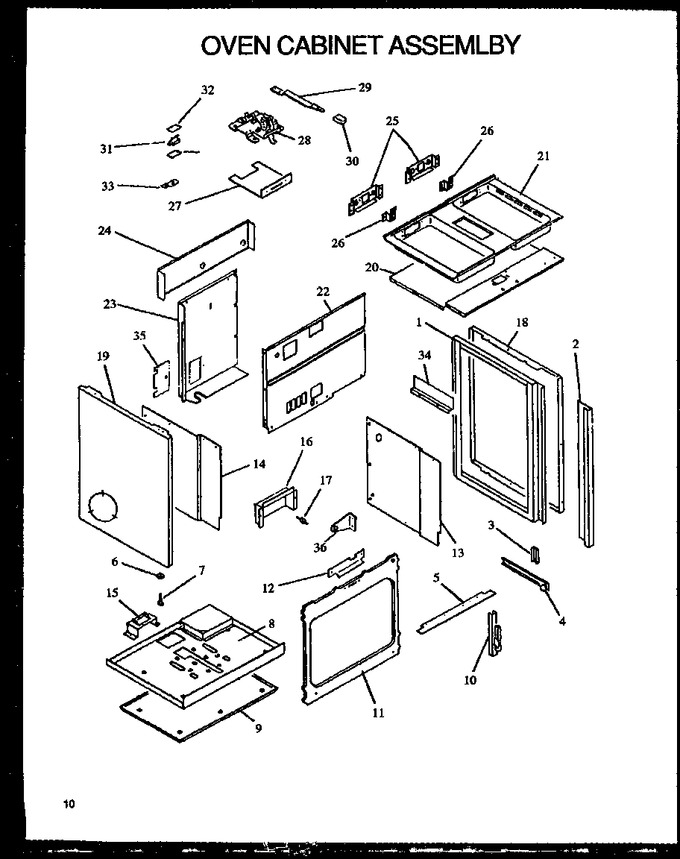

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61231CG | Frame, Side Panel Rh |
|
- | |||||
| 1 | 61230CG | Frame, Side Pnl L.h. |
|
- | |||||
| 2 | 303144W | Trim, Side Panel (wht) |
|
- | |||||
| 3 | Y0058557 | Support, Stg Dwr Trk |
|
- | |||||
| 4 | Y0058559 | Track, Drawer, R.h. |
|
- | |||||
| 4 | Y0058558 | Track, Drawer, L.h. |
|
- | |||||
| 5 | 62750CG | Filler, Front Frame |
|
- | |||||
| 6 | 0076204 | Retainer Nut |
|
- | |||||
| 7 | Y0307594 | Leg, Leveling |
|
- | |||||
| 8 | Y0307240 | Retainer, Bot. Insulation |
|
- | |||||
| 9 | Y0301706 | Heat Shield, Storage Drawer |
|
- | |||||
| 10 | Y0066952 | Kit, Door Hinge (lh-hs) |
|
- | |||||
| 10 | Y0066954 | Kit, Door Hinge (rh-ss) |
|
- | |||||
| 12 | 308085B | Bracket,erc Mount |
|
- | |||||
| 13 | Y0057443 | Retainer, Insul., Rh |
|
- | |||||
| 14 | 0057442 | Retainer, Insul., Lh |
|
- | |||||
| 15 | Y0301601 | Cover,ignitor & Burner |
|
- | |||||
| 16 | Y0308367 | Cover, Control Board |
|
- | |||||
| 17 | Y0300662 | Support |
|
- | |||||
| 18 | 063260W | Panel, Side Rt (wht) |
|
- | |||||
| 19 | 058542W | Panel, Side Lt (wht) |
|
- | |||||
| 20 | Y0301560 | Retainer Insulation Top X |
|
- | |||||
| 21 | 308742CG | Box, Burner |
|
- | |||||
| 22 | 0308186 | Panel, Rear |
|
- | |||||
| 23 | Y0058543 | Cover, Rear - Wire |
|
- | |||||
| 24 | Y0058544 | Shield, Rear |
|
- | |||||
| 25 | Y0300293 | Plate, Orifice Mtg |
|
- | |||||
| 26 | Y0040983 | Brkt, Plug Block Mtg |
|
- | |||||
| 27 | 0068101 | Bracket, Latch Mounting |
|
- | |||||
| 28 | 0302496 | Latch, Oven Door |
|
- | |||||
| 29 | 303040W | Handle, Door Latch (wht) |
|
- | |||||
| 30 | Y0300044 | Knob, Door Latch Lt Gray |
|
- | |||||
| 31 | Y0304579 | Latch Switch Hi Temp |
|
- | |||||
| 32 | Y0091523 | Insulation, Esm |
|
- | |||||
| 33 | Y0068091 | Bracket, Switch Mounting |
|
- | |||||
| 34 | 0301955 | Shield |
|
- | |||||
| 35 | Y0091308 | Plate, Access |
|
- | |||||
| 36 | 0307176 | Brkt, Oven Orifice |
|
- | |||||
| NI | Y0092365 | Screw 4-40x1 |
|
- | |||||
| NI | Y0071914 | Screw, Tt Ab No.8 X 3/8`` |
|
- | |||||
| NI | 0067920 | Screw |
|
- | |||||
| NI | Y0301889 | Plate, Cover |
|
- | |||||
| NI | Y0041813 | Screw Cabinet Trim |
|
- | |||||
| NI | Y0041807 | Screw No.8abx1/4 Ph Hd |
|
- | |||||
| NI | Y0078780 | Screw Latch Arm Mounting |
|
- | |||||
| NI | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 12.65 | ||||
| NI | Y0058806 | Screw, 4-40 X 1.00`` |
|
- | |||||
| NI | Y0301028 | Bracket |
|
- | |||||
| NI | 0302483 | Cover Plate, Latch |
|
- | |||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 | ||||
| NI | 8169479 | Screw, No.8-18 X 1/2 P Flt Hd (Replaces: Y0041811) |
|
$ 6.26 |
