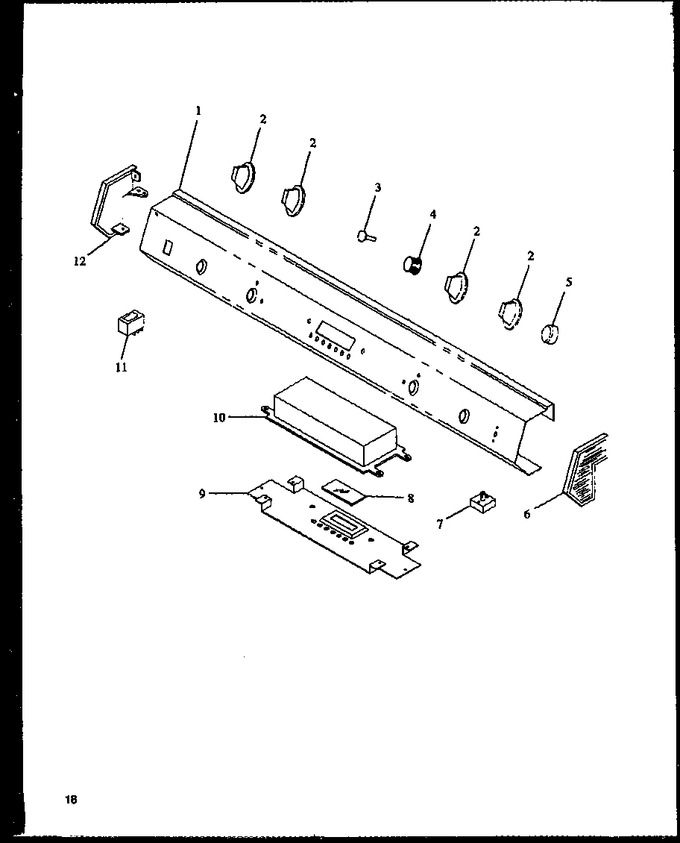

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307982W		Panel, Control		Appelez-nous	-
2	0303168		Knob, Top Burner		Appelez-nous	-
3	Y0305330		Knob, Set Button (lt Gray)		Appelez-nous	-
4	Y0305318		Knob, Clock (lt Gray)		Appelez-nous	-
5	Y0303165		Knob, Fan Switch (lt. Gray)		Appelez-nous	-
6	308172K		End Cap, Rt		Appelez-nous	-
7	Y0300574		Switch, Fan		Appelez-nous	-
8	Y0308107		Glass, Clock		Appelez-nous	-
9	308085B		Bracket,erc Mount		Appelez-nous	-
10	Y0308481		Control, Erc		Appelez-nous	-
11	Y0303167		Switch, Oven Light (gray)		Appelez-nous	-
12	308171K		End Cap, Lt K		Appelez-nous	-
NI	Y0069162		Screw		Appelez-nous	-
NI	Y0041778		Screw 6-32x3/16 Slo Cook Sw		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
