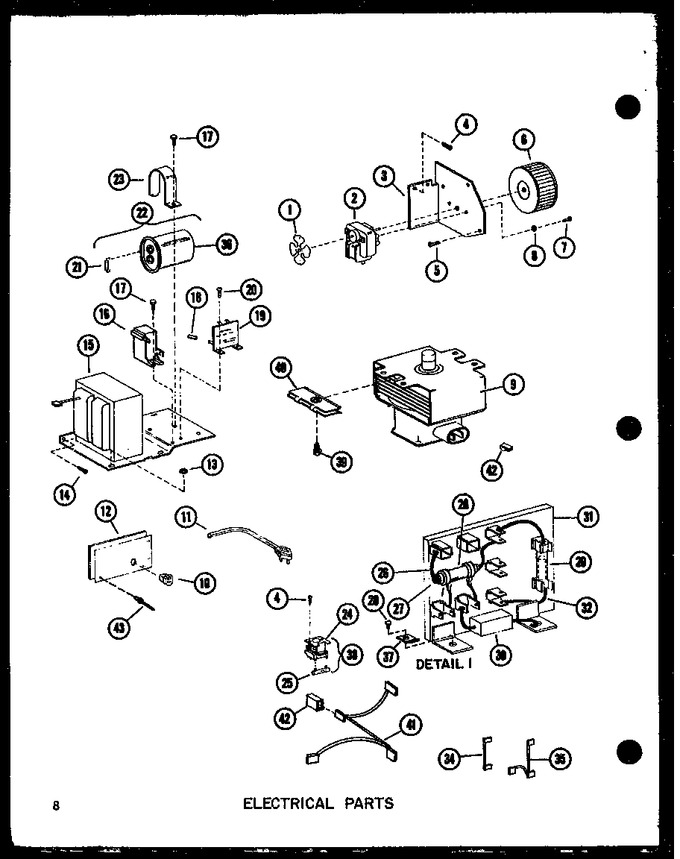

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5661801		Fan Blade		Appelez-nous	-
2	M0306701		Motor		Appelez-nous	-
3	B5673801		Bracket		Appelez-nous	-
4	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
5	M0230017		Screw,tc		Appelez-nous	-
6	B5602204		Blower Wheel		Appelez-nous	-
7	M0202642		Screw		Appelez-nous	-
8	M0272605		Washer		Appelez-nous	-
9	C8761701		Magnetron		Appelez-nous	-
10	M0370001		Strain Relief		Appelez-nous	-
11	B5703509		Power Cord		Appelez-nous	-
12	B5660602		(+) Panel Ca		Appelez-nous	-
13	WP487939		Nut   (Replaces: M0282015)				$ 6.95
14	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
15	D7333301		Transformer		Appelez-nous	-
16	B5767802		Kit, Diode		Appelez-nous	-
17	M0216517		Screw		Appelez-nous	-
18	M0325301		Insulator, Term. K		Appelez-nous	-
19	Y00000000		See Note Assembly, Terminal Board -- (see Detail 1)		Appelez-nous	-
20	M0218116		Screw		Appelez-nous	-
21	M0305202		Resistor A		Appelez-nous	-
22	R0160021		Capacitor Assy		Appelez-nous	-
23	A3197101		Strap-capacitor A		Appelez-nous	-
24	C3656303		Relay A		Appelez-nous	-
25	M0305007		Resistor, Relay A		Appelez-nous	-
26	M0308102		Fuse		Appelez-nous	-
27	M0321701		Sleeve		Appelez-nous	-
28	M0305009		Resistor A		Appelez-nous	-
29	M0305402		Resistor Fuse Kit		Appelez-nous	-
30	M0305204		Resistor		Appelez-nous	-
31	C8818401		Terminal Board		Appelez-nous	-
32	M0308101		Fuse				$ 9.87
34	C3655807		Jumper Wire		Appelez-nous	-
35	D7292617		Wire, Jumper, Rectifiers Fuse		Appelez-nous	-
36	C8790501		Capacitor Assy		Appelez-nous	-
37	M0320901		Terminal		Appelez-nous	-
38	R0159004		Relay Assy K		Appelez-nous	-
39	67006425		Screw   (Replaces: M0216530)			Immediately	$ 6.26
40	B5774401		Brkt-mag Tube		Appelez-nous	-
41	C8790601		Jumper Wire Hv		Appelez-nous	-
42	M0325501		Insulator, Pod K		Appelez-nous	-
43	A4539601		Pop Rivet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
