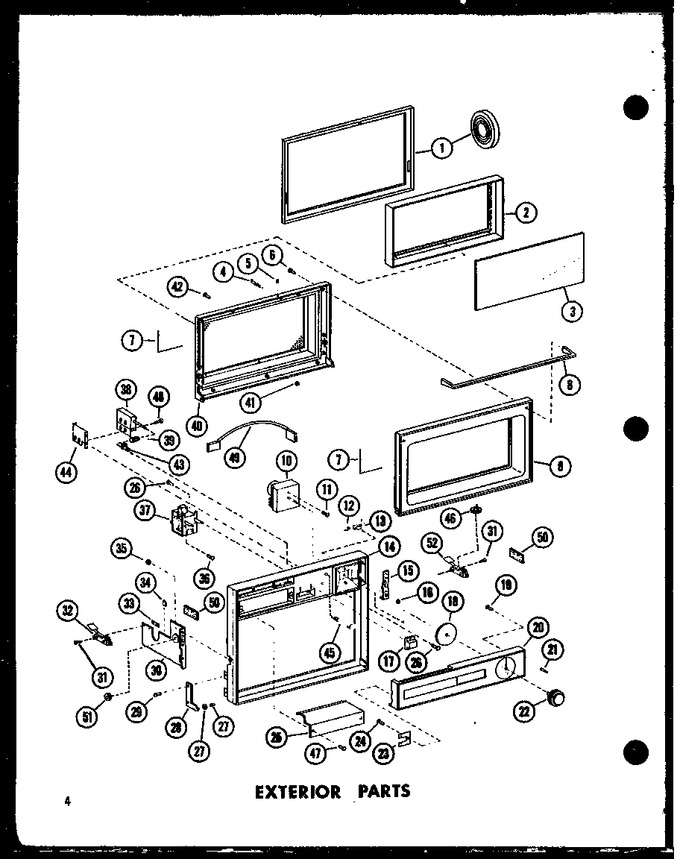

02 - Exterior Parts
03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0275141 | Tape, Gasket To Door, 1`` |
|
- | |||||
| 1 | D7254501 | Gasket |
|
- | |||||
| 2 | D7138801 | Door-inner |
|
- | |||||
| 3 | A3167902 | Window-inner Door |
|
- | |||||
| 4 | A3189601 | Latch |
|
- | |||||
| 5 | M0208014 | Screw |
|
- | |||||
| 6 | M0227539 | Screw |
|
- | |||||
| 7 | M0275554 | Sealer Ft. A / K |
|
- | |||||
| 8 | C3671301 | Handle-door |
|
- | |||||
| 9 | D7227601 | Outer Door |
|
- | |||||
| 10 | C8723901 | Timer-13 Min |
|
- | |||||
| 11 | M0201432 | Screw |
|
- | |||||
| 12 | A3171201 | Bulb |
|
- | |||||
| 13 | B5668701 | Lampholder |
|
- | |||||
| 14 | D7139202 | Bezel-oc |
|
- | |||||
| 15 | B5678301 | Retainer-escutcheon |
|
- | |||||
| 16 | M0287401 | Nut |
|
- | |||||
| 17 | C3672304 | Push Button-light |
|
- | |||||
| 18 | C8723101 | Disc-timer |
|
- | |||||
| 19 | M0220219 | Screw-shoulder |
|
- | |||||
| 20 | D7139002 | Escutcheon |
|
- | |||||
| 21 | R0191014 | Spring Clip |
|
- | |||||
| 22 | D7229301 | Knob-timer |
|
- | |||||
| 23 | B5662803 | Clip-escutcheon |
|
- | |||||
| 24 | M0234117 | Screw |
|
- | |||||
| 25 | C3671401 | Baffle-oven Light |
|
- | |||||
| 26 | M0228015 | Screw |
|
- | |||||
| 27 | M0274032 | Washer Non-metal |
|
- | |||||
| 27 | A3168101 | See Svc Ltr Cr-163d |
|
- | |||||
| 28 | C8732702 | Hinge Assy Lh |
|
- | |||||
| 28 | C8732701 | Hinge Assy Rh |
|
- | |||||
| 29 | M0253230 | Screw |
|
- | |||||
| 30 | C3676104 | Brkt-cb-assy-lh |
|
- | |||||
| 30 | C3676103 | Brkt-cb-assy Rh |
|
- | |||||
| 31 | M0202521 | Screw |
|
- | |||||
| 32 | A3162510 | Switch-l Intl A |
|
- | |||||
| 33 | M0289502 | Speed Nut |
|
- | |||||
| 34 | M0114901 | Clip |
|
- | |||||
| 35 | M0283401 | Nut, Self Thread |
|
- | |||||
| 36 | M0216517 | Screw |
|
- | |||||
| 37 | C3672601 | Switch,start-stop |
|
- | |||||
| 38 | B5718801 | Defrost Switch |
|
- | |||||
| 39 | A3245201 | Spring |
|
- | |||||
| 40 | D7147003 | Inner Door Ring Wld |
|
- | |||||
| 41 | M0288801 | Nut K |
|
- | |||||
| 42 | M0253418 | Screw |
|
- | |||||
| 43 | B5732201 | Sleeve |
|
- | |||||
| 44 | B5732102 | Bracket |
|
- | |||||
| 45 | A3245301 | Light Pilot |
|
- | |||||
| 46 | A3145101 | Washer K |
|
- | |||||
| 47 | M0230015 | Screw |
|
- | |||||
| 48 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 49 | C3655876 | Jumper Wire |
|
- | |||||
| 50 | A3030312 | Gasket, Evap. To Deflector |
|
- | |||||
| 51 | R0157145 | Roller Assy Kit |
|
- | |||||
| 52 | C8736703 | Switch |
|
- |
