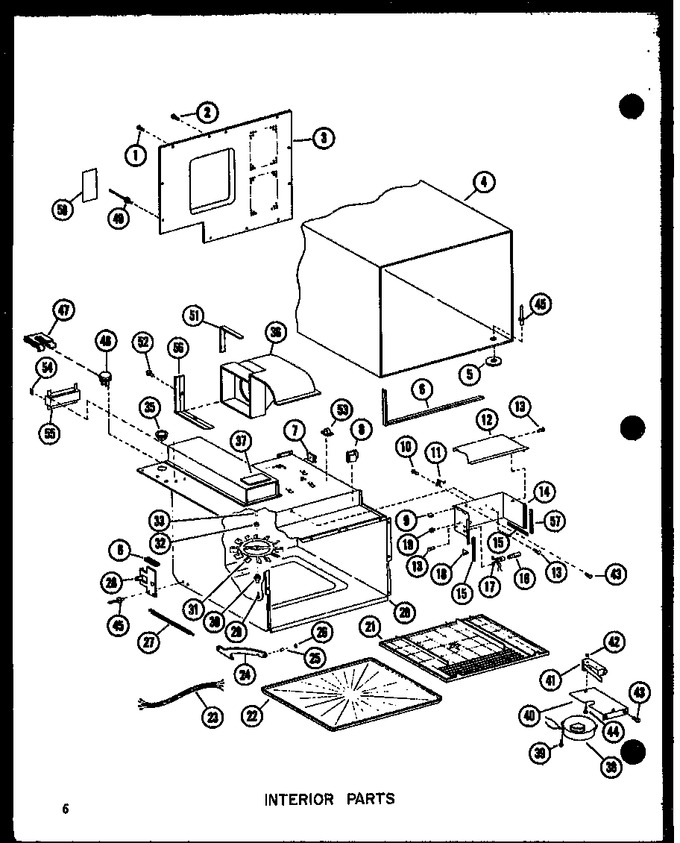

03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0230015 | Screw |
|
- | |||||
| 2 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 3 | D7332701 | Panel Access |
|
- | |||||
| 4 | D7110606 | Wrapper |
|
- | |||||
| 5 | B5732501 | Foot |
|
- | |||||
| 6 | A3030302 | Gasket |
|
- | |||||
| 7 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 8 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 9 | M0113503 | Clip |
|
- | |||||
| 10 | M0234117 | Screw |
|
- | |||||
| 11 | B5684101 | Protector, Thermal |
|
- | |||||
| 12 | C3671601 | Top-light Shield |
|
- | |||||
| 13 | M0216517 | Screw |
|
- | |||||
| 14 | C3671502 | Back-light Shield |
|
- | |||||
| 15 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 16 | A3167501 | Bulb Q |
|
$ 28.47 | |||||
| 17 | B5679502 | Lampholder |
|
- | |||||
| 18 | A3191301 | Gasket-light Shield |
|
- | |||||
| 19 | M0370004 | Strain Relief |
|
- | |||||
| 20 | D7152406 | Oven Wld |
|
- | |||||
| 21 | D7190903 | Grease Shield |
|
- | |||||
| 22 | D7107702 | Tray, Glass, Oven |
|
- | |||||
| 23 | D7337701 | Wiring Harness |
|
- | |||||
| 24 | B5693005 | Cb Arm |
|
- | |||||
| 25 | A3191401 | Pin-cb |
|
- | |||||
| 26 | M0273504 | Washer |
|
- | |||||
| 27 | B5682701 | Spring-cb Arm |
|
- | |||||
| 28 | B5678201 | Brkt-spring Anchor |
|
- | |||||
| 29 | M0201903 | Machine Screw |
|
- | |||||
| 30 | B5661601 | Bushing,stirrer |
|
- | |||||
| 31 | D7104401 | Fan, Stirrer |
|
- | |||||
| 32 | A3165901 | Spacer,stirrer |
|
- | |||||
| 33 | B5663801 | Wldmt,stirrer Supt |
|
- | |||||
| 35 | A3196401 | Bushing |
|
- | |||||
| 36 | D7334301 | Blower Housing |
|
- | |||||
| 37 | B5107614 | Gasket |
|
- | |||||
| 38 | B5699801 | Timer |
|
- | |||||
| 39 | M0218116 | Screw |
|
- | |||||
| 40 | B5699601 | Bracket |
|
- | |||||
| 41 | A3220701 | Switch, Cut-off |
|
- | |||||
| 42 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 43 | WP59002061 | Screwxxx (Replaces: M0216616) |
|
$ 6.98 | |||||
| 44 | M0202521 | Screw |
|
- | |||||
| 45 | A4539601 | Pop Rivet |
|
- | |||||
| 46 | B5665811 | Thermal Cut Out |
|
- | |||||
| 47 | M0115802 | Clip |
|
- | |||||
| 49 | A4539601 | Pop Rivet |
|
- | |||||
| 50 | B5738501 | Seal K |
|
- | |||||
| 51 | M0275012 | Tape-per Roll |
|
- | |||||
| 52 | M0130101 | Clip K |
|
- | |||||
| 53 | M0118801 | Clip |
|
- | |||||
| 54 | M0113504 | Clip K |
|
- | |||||
| 55 | B5675301 | Wldmt-wg Shield |
|
- | |||||
| 56 | C8791101 | Scroll Adaptor |
|
- | |||||
| 57 | A3030323 | Gasket, Cond. Base Pan Flange- |
|
- |
