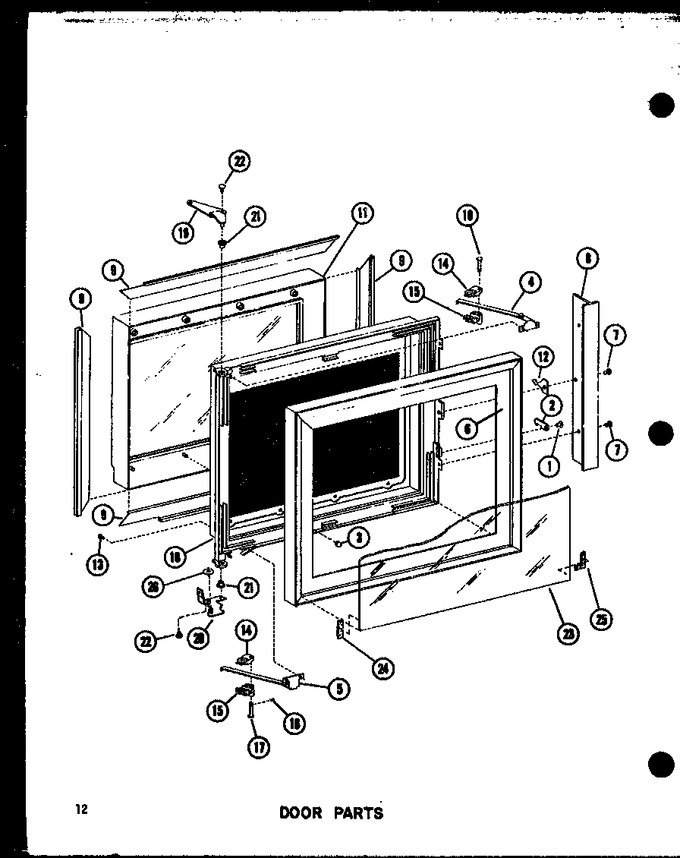

01 - Door Parts


02 - Page 1


03 - Page 2


04 - Page 3


05 - Page 4


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3183902		Pin, Countersunk, Latch		Appelez-nous	-
2	A3183001		Latch, Door		Appelez-nous	-
3	M0285401		Push Nut		Appelez-nous	-
4	B5724404		Door Stop		Appelez-nous	-
5	B5724401		Door Stop Assy		Appelez-nous	-
6	D7388201		Extrusion-door		Appelez-nous	-
7	M0253217		Screw		Appelez-nous	-
8	C8713403		Handle		Appelez-nous	-
9	M0275140		Tape Per Roll		Appelez-nous	-
9	D7211601		Gasket, Door Top, Bottom & Sid		Appelez-nous	-
10	D7213201		Weldment, Inner Door		Appelez-nous	-
11	D7250301		Inner Door Mold Assy		Appelez-nous	-
12	B5710801		Door Latch		Appelez-nous	-
13	M0253217		Screw		Appelez-nous	-
14	C3696902		Bushing		Appelez-nous	-
15	C3696903		Bushing		Appelez-nous	-
16	A3171501		Clip,hairpin		Appelez-nous	-
17	A3222601		Pin-door Stop		Appelez-nous	-
18	A3211102		Pin-door Stop		Appelez-nous	-
19	C8763702		Hinge-bottom		Appelez-nous	-
20	C8803501		Hinge, Bottom		Appelez-nous	-
21	B5721701		Bushing-hinge		Appelez-nous	-
22	M0258001		Screw		Appelez-nous	-
23	C8756101		Glass-door		Appelez-nous	-
24	A3030335		Gasket-per Ft		Appelez-nous	-
25	A3030336		Gasket-per Ea		Appelez-nous	-
26	M0274032		Washer Non-metal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
