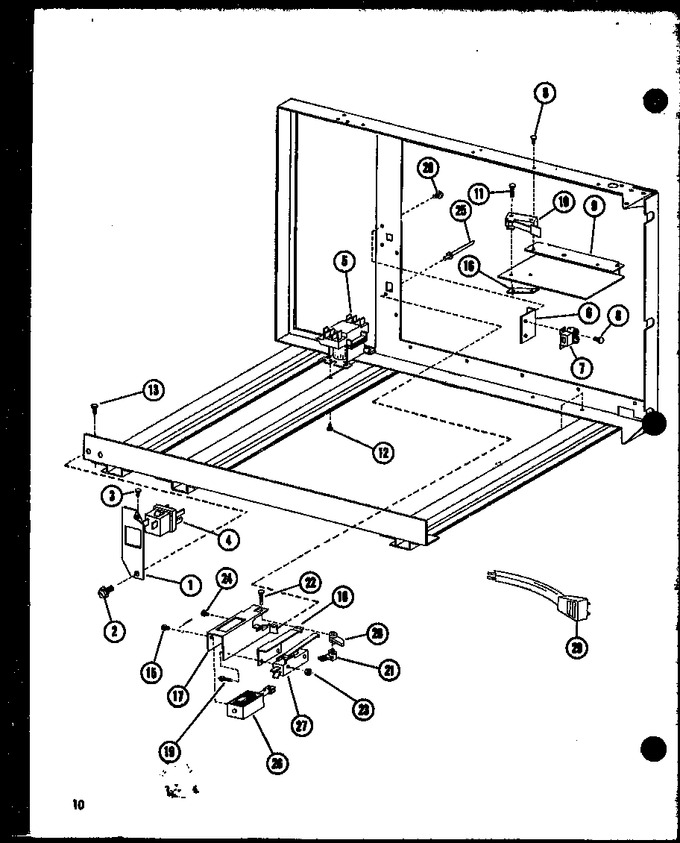

01 - Door Parts


02 - Page 1


03 - Page 2


04 - Page 3


05 - Page 4


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5788501		Outlet Mtg Plate		Appelez-nous	-
2	M0253543		Screw K		Appelez-nous	-
3	M0218128		Screw		Appelez-nous	-
4	B5789301		Plug		Appelez-nous	-
5	C3656303		Relay A		Appelez-nous	-
6	A3222702		Bracket		Appelez-nous	-
7	A3232302		Catch, Door		Appelez-nous	-
8	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
9	C8805501		Bracket, Switch		Appelez-nous	-
10	B8304401		Switch Wld		Appelez-nous	-
11	M0202521		Screw		Appelez-nous	-
12	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
13	M0253916		Screw		Appelez-nous	-
15	M0211514		Screw A K		Appelez-nous	-
16	M0289502		Speed Nut		Appelez-nous	-
17	C8782402		Bracket Latch K		Appelez-nous	-
18	B5769001		Latch Spring		Appelez-nous	-
19	M0202521		Screw		Appelez-nous	-
20	B5672502		Bell Crank		Appelez-nous	-
21	B5672503		Bell Crank		Appelez-nous	-
22	A3182602		Pin-bell Crank		Appelez-nous	-
23	M0282005		Nut K				$ 7.07
24	M0203014		Screw		Appelez-nous	-
25	A4539601		Pop Rivet		Appelez-nous	-
26	B5682103		Solenoid, Door Locking		Appelez-nous	-
27	A3163212		Switch, Preform, Latch		Appelez-nous	-
28	M0230015		Screw		Appelez-nous	-
29	B5789201		Power Cord		Appelez-nous	-
