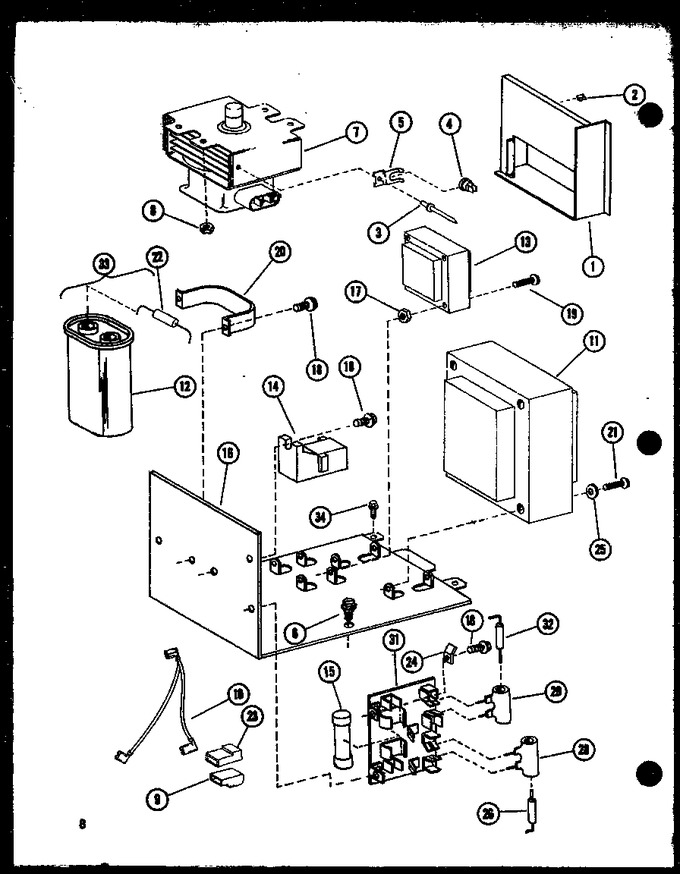

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8802401		Air Duct Wld		Appelez-nous	-
2	M0113501		Clip		Appelez-nous	-
3	A4539601		Pop Rivet		Appelez-nous	-
4	B5665816		Thermal Cut Out		Appelez-nous	-
5	B5725102		Clip		Appelez-nous	-
6	YM0258229		Sems Fastener		Appelez-nous	-
7	C8761709		Magnetron		Appelez-nous	-
7	C8761708		Magnetron		Appelez-nous	-
8	WP488130		Nut   (Replaces: M0282007)				$ 6.27
9	M0325501		Insulator, Pod K		Appelez-nous	-
10	D7292654		Jumper Wire		Appelez-nous	-
10	D7292655		Jumper Wire		Appelez-nous	-
10	D7292651		Jumper Wire		Appelez-nous	-
10	D7292653		Jumper Wire		Appelez-nous	-
10	D7292652		Jumper Wire		Appelez-nous	-
11	D7369203		Transformer		Appelez-nous	-
12	C8790501		Capacitor Assy		Appelez-nous	-
13	C8788008		Transformer Filament		Appelez-nous	-
14	B5767803		Kit, Diode		Appelez-nous	-
15	M0850507		Fuse-20a		Appelez-nous	-
16	D7419701		Mtg Plate		Appelez-nous	-
17	M0282005		Nut K				$ 7.07
18	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
19	M0254409		Screw		Appelez-nous	-
20	A3184702		Bracket		Appelez-nous	-
21	M0254452		Screw		Appelez-nous	-
22	M0305202		Resistor A		Appelez-nous	-
23	M0325301		Insulator, Term. K		Appelez-nous	-
24	M0320901		Terminal		Appelez-nous	-
25	M0272805		Lock Washer		Appelez-nous	-
26	M0308102		Fuse		Appelez-nous	-
28	M0308601		Resistor A		Appelez-nous	-
29	M0308607		Resistor K		Appelez-nous	-
31	C8841603		Terminal Board		Appelez-nous	-
32	M0308109		Fuse Resistor K   (Replaces: M0308107)		Appelez-nous	-
33	R0160021		Capacitor Assy		Appelez-nous	-
34	M0253916		Screw		Appelez-nous	-
