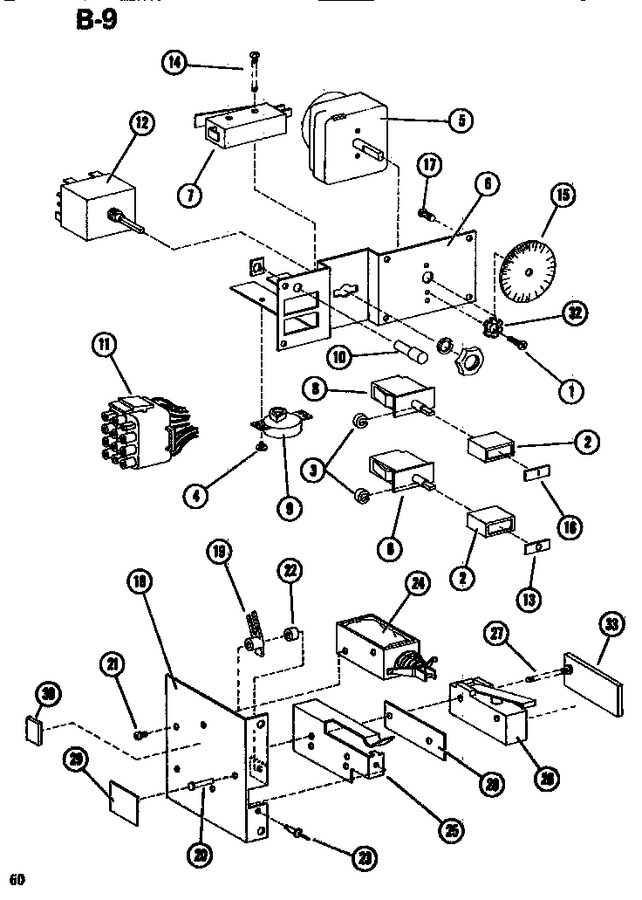

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10068250		Screw   (Replaces: M0202530)				$ 3.66
2	B5754401		Push Button		Appelez-nous	-
3	A3266401		Spacer		Appelez-nous	-
4	M0234114		Screw		Appelez-nous	-
5	C3657103		Timer-23 Min		Appelez-nous	-
6	D7317201		Bracket-control Mt		Appelez-nous	-
7	A3278901		Switch-slo Cook		Appelez-nous	-
8	B5762102		Switch-pb		Appelez-nous	-
9	B5699802		Timer		Appelez-nous	-
10	B5785702		Light Pilot		Appelez-nous	-
11	D7426901		Wire Harness		Appelez-nous	-
12	B5740102		Switch-selector		Appelez-nous	-
13	A3266308		Insert, Button		Appelez-nous	-
14	M0227520		Screw		Appelez-nous	-
15	C8730408		Disc-timer		Appelez-nous	-
16	A3266308		Insert, Button		Appelez-nous	-
17	M0228015		Screw		Appelez-nous	-
18	C8758001		Bracket-latch		Appelez-nous	-
19	B5754101		Bell Crank		Appelez-nous	-
20	A3264001		Pin-bell Crank		Appelez-nous	-
21	M0201414		Screw		Appelez-nous	-
22	A3266201		Spacer-bell Crank		Appelez-nous	-
23	B5642908		Pop Rivet		Appelez-nous	-
24	B5682105		Solenoid		Appelez-nous	-
25	B5771401		Spring, Latch		Appelez-nous	-
26	A3163411		Switch		Appelez-nous	-
27	M0227520		Screw		Appelez-nous	-
28	A3178601		Insulator Sheet		Appelez-nous	-
29	M0275111		Tape		Appelez-nous	-
30	M0050902		X$x Pad		Appelez-nous	-
32	M0272803		Lock Washer		Appelez-nous	-
33	A3030302		Gasket		Appelez-nous	-
