SELECT A DIAGRAM

01 - Door & Bezel


02 - Electrical


03 - Interior


04 - Interior

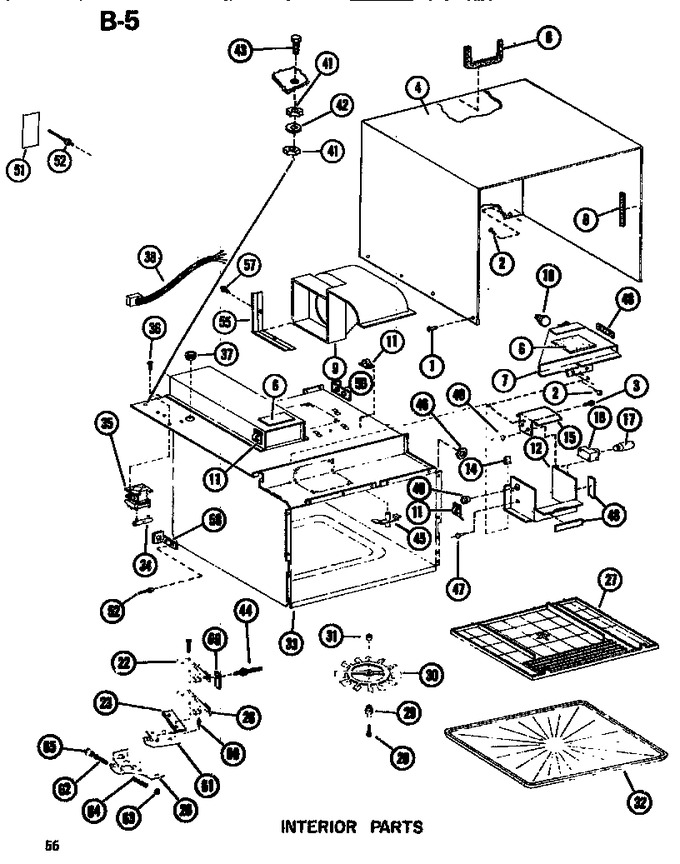

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006425		Screw   (Replaces: M0230917)			Immediately	$ 6.26
2	M0241203		Screw		Appelez-nous	-
3	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
4	B8300001		O C Wld		Appelez-nous	-
6	B5107614		Gasket		Appelez-nous	-
7	C8758203		Air Baffle		Appelez-nous	-
8	A3030302		Gasket		Appelez-nous	-
9	D7334301		Blower Housing		Appelez-nous	-
10	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
11	M0104102		Clip, Cord				$ 8.10
12	C3662605		Light Shield		Appelez-nous	-
14	M0113503		Clip		Appelez-nous	-
15	C8822701		Brkt-socket		Appelez-nous	-
16	B5764301		Socket-lamp		Appelez-nous	-
17	A3167503		Bulb-250 V		Appelez-nous	-
18	B5665810		Thermal Cut Out		Appelez-nous	-
20	D7402101		Brkt-interlock		Appelez-nous	-
22	B5666511		Switch Wld		Appelez-nous	-
23	A3178604		Insulator Sheet		Appelez-nous	-
26	A3278905		Switch		Appelez-nous	-
27	D7190903		Grease Shield		Appelez-nous	-
28	M0201903		Machine Screw		Appelez-nous	-
29	B5661601		Bushing,stirrer		Appelez-nous	-
30	D7104401		Fan, Stirrer		Appelez-nous	-
31	A3165901		Spacer,stirrer		Appelez-nous	-
32	D7107703		Tray, Glass, Oven		Appelez-nous	-
33	D7175017		Oven Wld		Appelez-nous	-
34	M0305007		Resistor, Relay A		Appelez-nous	-
35	R0159007		Relay Assy		Appelez-nous	-
35	C3656302		Relay, Power And Surge		Appelez-nous	-
36	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
37	A3196401		Bushing		Appelez-nous	-
38	D7438001		Wire Harness		Appelez-nous	-
40	A4539602		Pop Rivet		Appelez-nous	-
41	M0282005		Nut K				$ 7.07
43	M0202521		Screw		Appelez-nous	-
44	A4539601		Pop Rivet		Appelez-nous	-
45	B5663801		Wldmt,stirrer Supt		Appelez-nous	-
46	M0282901		Nut, Self Thread		Appelez-nous	-
48	M0275023		Tape,alum Per Roll		Appelez-nous	-
49	A3293501		Bushing		Appelez-nous	-
50	B5790801		Brkt-oven Retainer		Appelez-nous	-
51	B5738501		Seal K		Appelez-nous	-
52	A4539601		Pop Rivet		Appelez-nous	-
55	C8791101		Scroll Adaptor		Appelez-nous	-
57	M0130101		Clip K		Appelez-nous	-
58	B5790802		Brkt-oven Retainer		Appelez-nous	-
60	M1205109		Rivet A-k		Appelez-nous	-
61	B5768003		Bracket		Appelez-nous	-
62	A3277601		Screw Adjusting A-k		Appelez-nous	-
63	M0118002		Clip		Appelez-nous	-
64	A3277701		Spring A		Appelez-nous	-
65	A3277801		Guide Screw A-k		Appelez-nous	-
66	A1007601		Insulator		Appelez-nous	-
