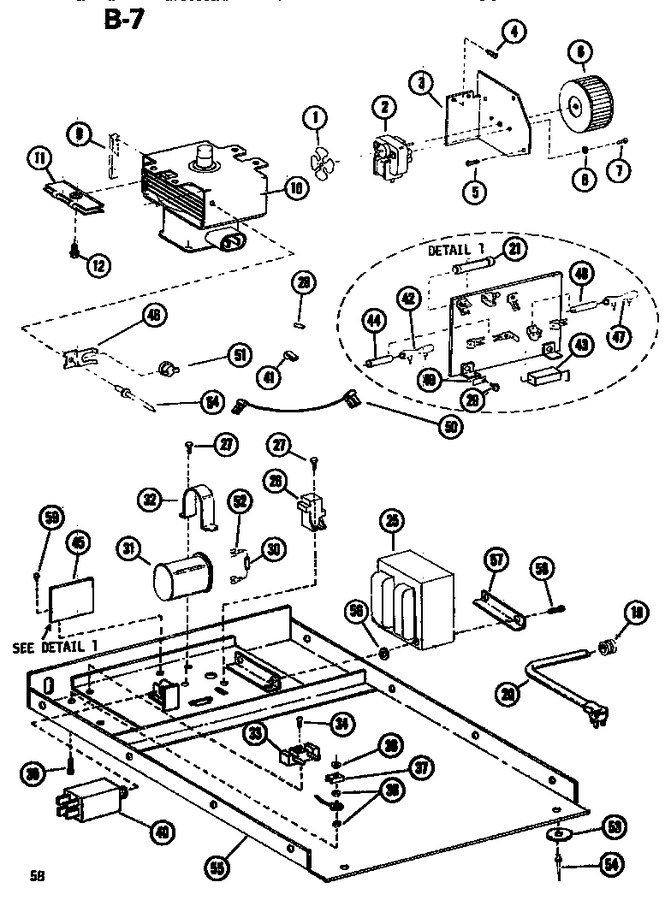

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5661801		Fan Blade		Appelez-nous	-
2	M0306703		Motor, Blower		Appelez-nous	-
3	B5673801		Bracket		Appelez-nous	-
4	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
5	M0230017		Screw,tc		Appelez-nous	-
6	B5602204		Blower Wheel		Appelez-nous	-
7	M0202642		Screw		Appelez-nous	-
8	M0272605		Washer		Appelez-nous	-
9	A3030340		Gasket-per Ft		Appelez-nous	-
10	C8761701		Magnetron		Appelez-nous	-
11	B5774401		Brkt-mag Tube		Appelez-nous	-
12	67006425		Screw   (Replaces: M0216530)			Immediately	$ 6.26
19	A3278802		Strain Relief		Appelez-nous	-
20	B5669001		Cord, Power		Appelez-nous	-
21	A3194303		Fuse, 12 Amp		Appelez-nous	-
25	D7310504		Transformer		Appelez-nous	-
26	11QBP0235		Kit, Diode   (Replaces: B5767801)				$ 15.33
27	M0216517		Screw		Appelez-nous	-
28	M0325301		Insulator, Term. K		Appelez-nous	-
29	M0251002		Screw		Appelez-nous	-
30	A1001901		Resistor Assy		Appelez-nous	-
31	C8790502		Capacitor Kit		Appelez-nous	-
32	A3257001		Strap-capacitor		Appelez-nous	-
33	A3259301		Terminal Block		Appelez-nous	-
34	M0229005		Screw K		Appelez-nous	-
37	A3197701		Washer-u Type		Appelez-nous	-
38	M0282005		Nut K				$ 7.07
39	M0202521		Screw		Appelez-nous	-
40	B5717801		Line Filter Xx		Appelez-nous	-
41	M0325501		Insulator, Pod K		Appelez-nous	-
42	M0308601		Resistor A		Appelez-nous	-
43	M0305204		Resistor		Appelez-nous	-
44	M0308102		Fuse		Appelez-nous	-
45	C8826301		Terminal Board		Appelez-nous	-
46	B5725103		Clip		Appelez-nous	-
47	M0308608		Resistor		Appelez-nous	-
48	M0308106		Fuse		Appelez-nous	-
49	M0320901		Terminal		Appelez-nous	-
50	C3655888		Jumper Wire		Appelez-nous	-
50	C3655887		Jumper Wire		Appelez-nous	-
51	B5665817		Thermal Cut Out		Appelez-nous	-
52	M0320542		Terminal		Appelez-nous	-
53	B5732501		Foot		Appelez-nous	-
54	A4539601		Pop Rivet		Appelez-nous	-
55	B8304801		Base Pan		Appelez-nous	-
56	M0272506		Washer		Appelez-nous	-
57	B5790401		Brkt-chassis		Appelez-nous	-
58	M0254450		Screw		Appelez-nous	-
59	M0251002		Screw		Appelez-nous	-
NI	D7292647		Jumper Wire		Appelez-nous	-
NI	D7292617		Wire, Jumper, Rectifiers Fuse		Appelez-nous	-
NI	D7365104		Jumper Wire		Appelez-nous	-
NI	D7365109		Jumper Wire		Appelez-nous	-
