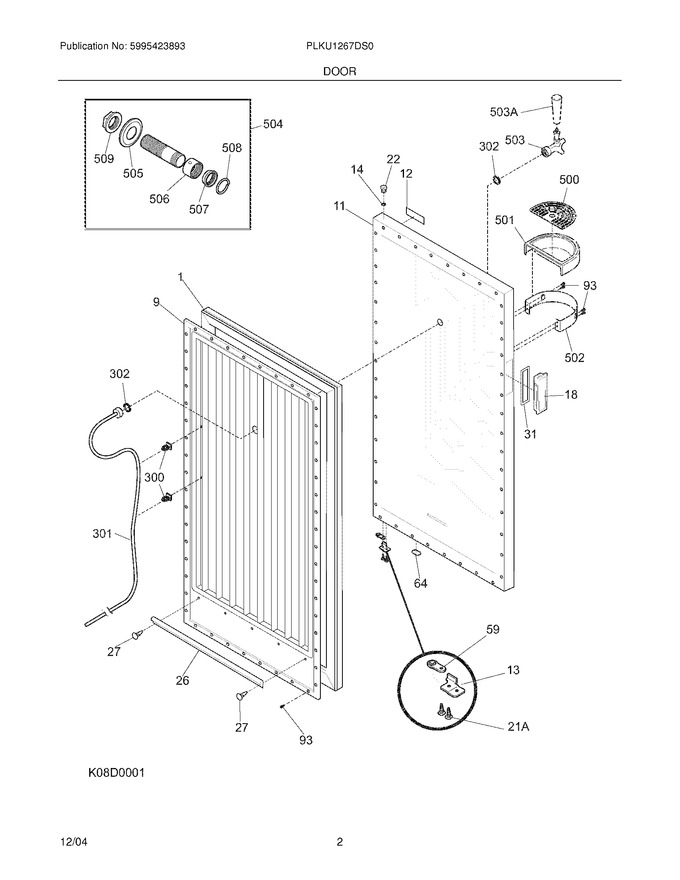

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216522316		Gasket-door,black				$ 180.76
9	216568701		Panel-inner Door,frzr		Appelez-nous	-
11	216565418		Panel-outer Door, Stainless		Appelez-nous	-
12	240558802		Label-nameplate				$ 3.03
13	5303271076		Door Stop				$ 16.30
14	5303313518		Washer, Sealing		Appelez-nous	-
18	216140206		Handle,recessed ,black		Appelez-nous	-
22	216970802		Bearing,hinge ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524300		Gasket,secondary				$ 27.56
27	5303212828		Clip,panel Mtg				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
59	5303271072		Bearing-door,closer Ramp		Appelez-nous	-
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
300	297007500		Clip,delivery Tube ,(2)		Appelez-nous	-
301	5304443662		Hose,delivery ,3/16`` Id X 5`		Appelez-nous	-
302	5304443664		Washer,sealing ,neoprene ,(2)				$ 10.71
500	297007200		Cover,drip Tray		Appelez-nous	-
501	297007000		Drip Tray		Appelez-nous	-
502	297007100		Bracket,drip Tray		Appelez-nous	-
503	5304443658		Faucet,standard				$ 319.78
504	5304443666		Shank,faucet Mtg.		Appelez-nous	-
505	5304443667		Flange,sealing ,plastic ,black		Appelez-nous	-
506	5304443668		Nut,faucet Coupling ,chrome		Appelez-nous	-
507	5304443669		Sleeve		Appelez-nous	-
508	5304443670		Snap Ring		Appelez-nous	-
509	5304443672		Lock Nut		Appelez-nous	-
21A	5303271077		Screw,flat Head ,no.1/4-20 ,door Stop/hng				$ 8.82
F503	5304443659		Knob,faucet ,black		Appelez-nous	-
