SELECT A DIAGRAM

01 - Cover


03 - Door

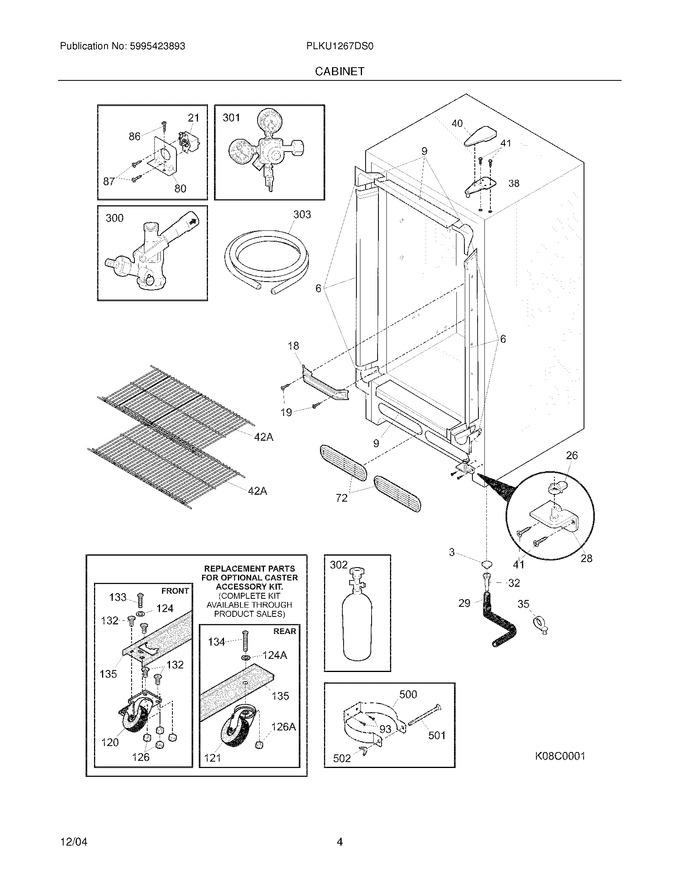

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604400		Breaker Kit W/corners		Appelez-nous	-
9	216603400		Breaker Kit W/corners,22.13`` Long ,top Or Bottom		Appelez-nous	-
18	216446900		Handle,white				$ 52.34
19	216719900		Screw,handle Mtg. ,no.8-18 X .75 Ab ,(2)		Appelez-nous	-
26	216470700		Bearing-hinge,closer Ramp		Appelez-nous	-
28	216247300		Hinge,bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216629700		Clip		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	216809001		Cover-upper Hinge,black				$ 13.70
41	216936800		Screw-hinge,12-24x.700 Hwh ,btm		Appelez-nous	-
72	216952701		Grille/guard,black ,(2)				$ 28.76
80	216307501		Bracket-temp Control		Appelez-nous	-
86	216707700		Screw,8-18 X 1/2		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
120	216658200		Roller-front,w/brake ,(2)				$ 320.93
121	216495200		Roller-rear,(2)		Appelez-nous	-
124	216658500		Washer,flat ,5/16 ,front ,(2)		Appelez-nous	-
126	216658600		Nut,locking ,5/16-18 ,front ,(10)		Appelez-nous	-
132	216658400		Bolt,caster ,5/16 Sq. Neck ,front ,(8)		Appelez-nous	-
133	216658700		Bolt,caster ,5/16-18 X .75 ,front ,(2)		Appelez-nous	-
134	216495600		Bolt,caster ,3/8 X 1.5 ,rear ,(2)		Appelez-nous	-
135	297012201		Support,caster ,black ,(2)		Appelez-nous	-
300	5304443657		Coulper,keg		Appelez-nous	-
301	5304443660		Guage,pressure ,double ,co2 Primary		Appelez-nous	-
302	5304443661		Tank,co2 ,aluminum		Appelez-nous	-
303	5304443663		Hose,co2 ,5/16`` Id X 5`		Appelez-nous	-
500	297000700		Bracket,co2 Cylinder		Appelez-nous	-
501	297012900		Bolt,1/4-20 X 4		Appelez-nous	-
502	297013000		Nut,wing ,1/4-20		Appelez-nous	-
42A	216546200		Shelf,14.50 X 23.88 Wh,14.50x23.88 ,white		Appelez-nous	-
F124	216495400		Washer,flat ,3/8 ,rear ,(2)		Appelez-nous	-
F126	216495700		Nut,locking ,3/8 ,rear ,(2)		Appelez-nous	-
F21	216710600		Control-temperature				$ 114.08
F303	5304443665		Clamp,snap ,5/16`` Hose ,(2)		Appelez-nous	-
NI	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	297001701		Insulation,drain Tube ,24``		Appelez-nous	-
NI	5304443671		Cleaning Kit,deluxe				$ 284.70

    View Diagram in Separate Window       Print Part List
