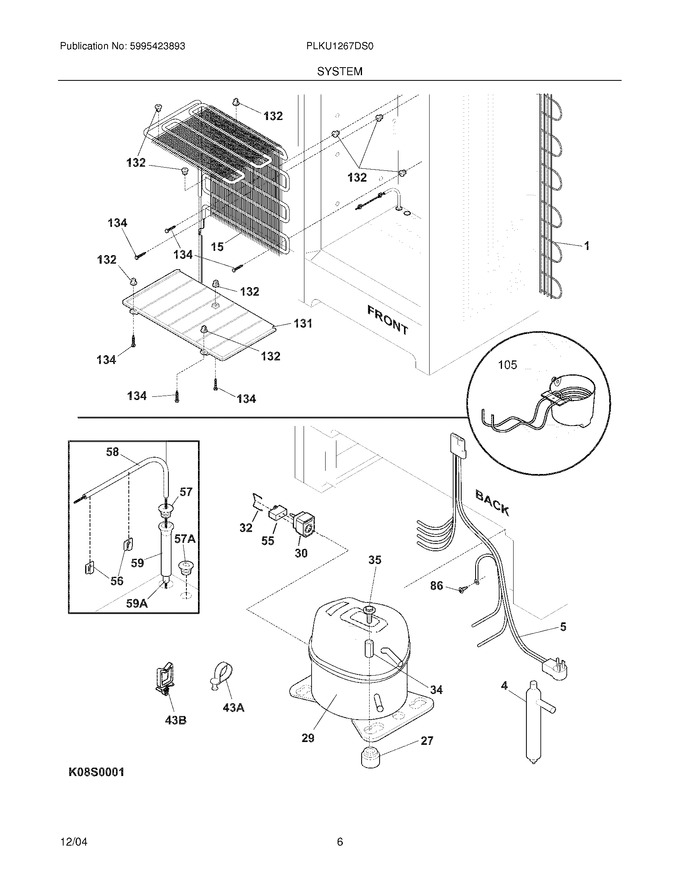

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	216940400		Evaporator,tubing Assy ,white		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954200		Controller,compressor ,5 Speed				$ 63.79
32	216954300		Clip,controller				$ 17.01
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
56	216611700		Clip,plastic ,temp Sensor Mtg ,snap-in		Appelez-nous	-
57	297014500		Plug-suction Line		Appelez-nous	-
58	216611600		Tube,control Well		Appelez-nous	-
59	216502500		Sleeve,suction Line				$ 10.85
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
105	216999902		Drain-cup Assy,3/16``		Appelez-nous	-
131	216701100		Pan-drain,evap Drip Pan		Appelez-nous	-
132	216225700		Grommet-spacer				$ 7.77
134	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
43A	216629700		Clip		Appelez-nous	-
43B	216327800		Clip,wire		Appelez-nous	-
57A	216711001		Plug,white ,plug Evap		Appelez-nous	-
59A	216341800		Seal-cap		Appelez-nous	-
F1	5300123788		Condenser				$ 635.80
F29	5304507767		Compressor,w/o Electricals   (Replaces: 216966300)				$ 726.41
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216964600		Harness-main		Appelez-nous	-
F55	218909912		Capacitor-run,220 Vac ,12 Microfarad			Immediately	$ 74.75
NI	216533200		Wire-ground		Appelez-nous	-
NI	5303208622		Clip Grounding		Appelez-nous	-
NI	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
NI	216707700		Screw,8-18 X 1/2		Appelez-nous	-
NI	216970600		Heat Exchanger,suction Line				$ 356.46
NI	297000600		Shield,liner ,bottom		Appelez-nous	-
NI	05878556		Clip, Compressor Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
