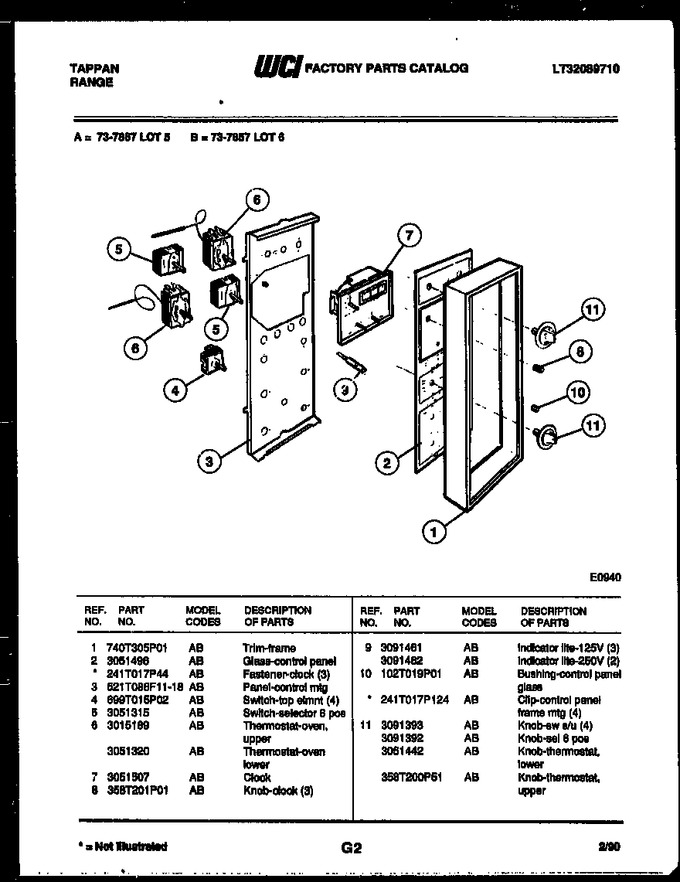

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	740T305P01		Trim, Frame		Appelez-nous	-
2	3051496		Glass, Control Panel		Appelez-nous	-
3	521T086F11-18		Panel-control Mtg.		Appelez-nous	-
4	699T015P02		Switch-top Elmnt (4)		Appelez-nous	-
5	3051315		Switch-selector 6 Pos.		Appelez-nous	-
6	3015189		Thermostat, Oven Upper		Appelez-nous	-
7	3051507		Clock		Appelez-nous	-
8	358T201P01		Knob, Clock (3)		Appelez-nous	-
9	3091461		Indicator Lite, 125v (3)		Appelez-nous	-
10	102T019P01		Bushing, Control Panel Glass		Appelez-nous	-
11	3051442		Knob, Thermostat, Lower		Appelez-nous	-
11	358T200P51		Knob, Thermostat, Upper		Appelez-nous	-
11	3091393		Knob-sw S/u (4)		Appelez-nous	-
11	3091392		Knob-sel 6 Pos		Appelez-nous	-
10A	241T017P124		Clip-control Panel Frame Mtg (4) (non-illustrated)		Appelez-nous	-
2A	241T017P44		Fastener-clock (3) (non-illustrated)		Appelez-nous	-
6A	3051320		Thermostat, Oven Lower		Appelez-nous	-
9A	3091462		Indicator Lite, 250v (2)		Appelez-nous	-
