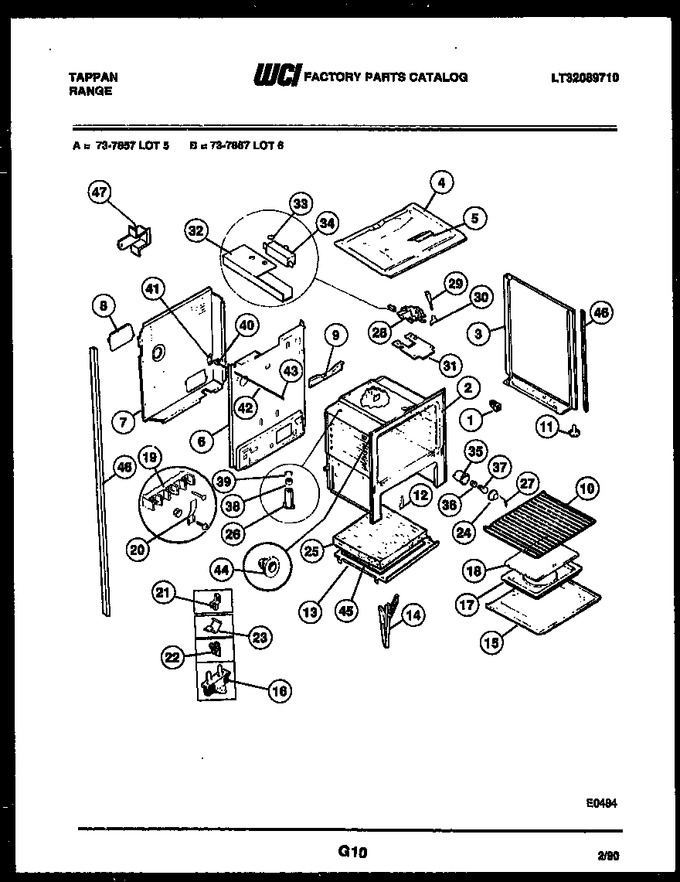

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	665T188P02		Spacer, Bodyside (8)		Appelez-nous	-
3	3200794		Panel, Bodyside, Lh (wheat)		Appelez-nous	-
4	3051109		Burner Box		Appelez-nous	-
5	3131101		Cover, Plate		Appelez-nous	-
6	3203082		Back-main		Appelez-nous	-
7	3203549		Shield-lower Wall		Appelez-nous	-
8	3203405		Cover-lower Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	3131973		Rack, Oven (2)		Appelez-nous	-
11	3203397		Screw-levelling (4)		Appelez-nous	-
12	3131570		Cover Hng. Cutout (2)				$ 7.35
13	3200825		Shield-wool Lower		Appelez-nous	-
14	3051414		Channel-door Hng (2)		Appelez-nous	-
15	3203540		Bottom Oven		Appelez-nous	-
16	3051147		Fuse-thermo Cutout		Appelez-nous	-
17	539T010F01-86		Broiler Pan		Appelez-nous	-
18	3131356		Insert, Broiler Pan		Appelez-nous	-
19	709T031P01		Terminal Block		Appelez-nous	-
20	711T048P01		Ground Strap		Appelez-nous	-
21	3131295		Clip-thermo Bulb (2)		Appelez-nous	-
22	3051162		Glide-drawer (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
25	3051429		Insulation, Bottom		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	3204585		Wire Glass Retainer		Appelez-nous	-
28	3051258		Latch, Door		Appelez-nous	-
29	3051473		Handle, Latch		Appelez-nous	-
30	358T158P02		Knob, Latch		Appelez-nous	-
31	3051413		Shield-latch		Appelez-nous	-
32	3131593		Shield, Bi Metal Catch		Appelez-nous	-
33	3051733		Fastener, Push On (3)		Appelez-nous	-
34	3051734		Switch, Latching		Appelez-nous	-
35	3131363		Tube, Oven Lite		Appelez-nous	-
36	3051735		Socket, Oven Lite		Appelez-nous	-
37	374T018P05		Lite Bulb, Oven		Appelez-nous	-
38	3051737		Filter-catalyst		Appelez-nous	-
39	612T079P01		Retain, Catalyst		Appelez-nous	-
40	3014246		Switch Door		Appelez-nous	-
41	3131289		Bracket, Light Switch		Appelez-nous	-
42	3051495		Rod, Light		Appelez-nous	-
43	3051251		Cover, Rod		Appelez-nous	-
44	3051731		Button-remote It Switch		Appelez-nous	-
45	3200848		Shield,heat ,lower		Appelez-nous	-
46	3051723		Tube-post Lh		Appelez-nous	-
47	3203582		Shield-rear Wall		Appelez-nous	-
27A	3131303		Insulation, Back (non-illustrated)		Appelez-nous	-
27B	3131114		Bumper-fr Frame (2) (non-illustrated)		Appelez-nous	-
27C	636T163P01		Screw-hng Mtg (6) (non-illustrated)		Appelez-nous	-
27D	479T069P41		Nut, Hex, Brass (6)		Appelez-nous	-
30A	636T144P01		Screw, Set Latch Knob		Appelez-nous	-
3A	3200791		Panel, Bodyside, Rh (wheat)		Appelez-nous	-
45A	3200833		Insulation-wrap (non-illustrated)		Appelez-nous	-
45B	3200834		Shield-heat Bodyside (2) (non-illustrated)		Appelez-nous	-
45C	3200847		Insulation-lower (non-illustrated)		Appelez-nous	-
45D	3200846		Fastener-edge Mounting (2) (non-illustrated)		Appelez-nous	-
45E	3131305		Insulation, Touch (non-illustrated)		Appelez-nous	-
45F	3131903		Bumper				$ 55.36
46A	3051724		Tube-post Rh		Appelez-nous	-
46B	3934056		Anti-tip Kit		Appelez-nous	-
47A	3203550		Plug-button			Immediately	$ 15.22

    View Diagram in Separate Window       Print Part List
