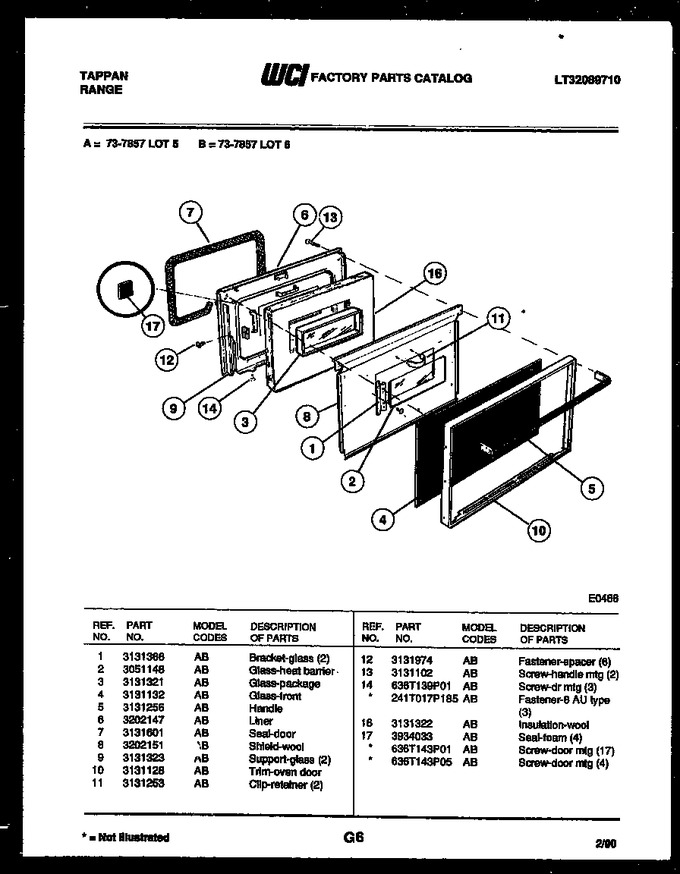

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131366		Bracket, Glass (2)		Appelez-nous	-
2	3051148		Glass, Heat Barrier		Appelez-nous	-
3	3131321		Glass, Package		Appelez-nous	-
4	3131132		Glass, Front		Appelez-nous	-
5	3131256		Handle		Appelez-nous	-
6	3202147		Liner		Appelez-nous	-
7	3131601		Seal, Door		Appelez-nous	-
8	3202151		Shield, Wool		Appelez-nous	-
9	3131323		Support, Glass (2)		Appelez-nous	-
10	3131128		Trim, Oven Door		Appelez-nous	-
11	3131253		Clip, Retainer (2)		Appelez-nous	-
12	3131974		Fastener, Spacer (6)		Appelez-nous	-
13	3131102		Screw-handle Mtg (2)		Appelez-nous	-
14	636T139P01		Screw Dr Mtg (3)		Appelez-nous	-
16	3131322		Insulation, Wool		Appelez-nous	-
17	3934033		Seal, Foam (4)		Appelez-nous	-
*21040	636T143P01		Screw		Appelez-nous	-
*21040	636T143P05		Screw-door Mtg (4)		Appelez-nous	-
14A	241T017P185		Fastener-8au Type (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
