02 - Control Panel, Cook-master, Switche
03 - Cook Top
04 - Bake & Broil Elements
05 - Oven Door Panels
06 - Oven Liner, Side Panels
07 - Relay, Pc Boards
08 - Drawer
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

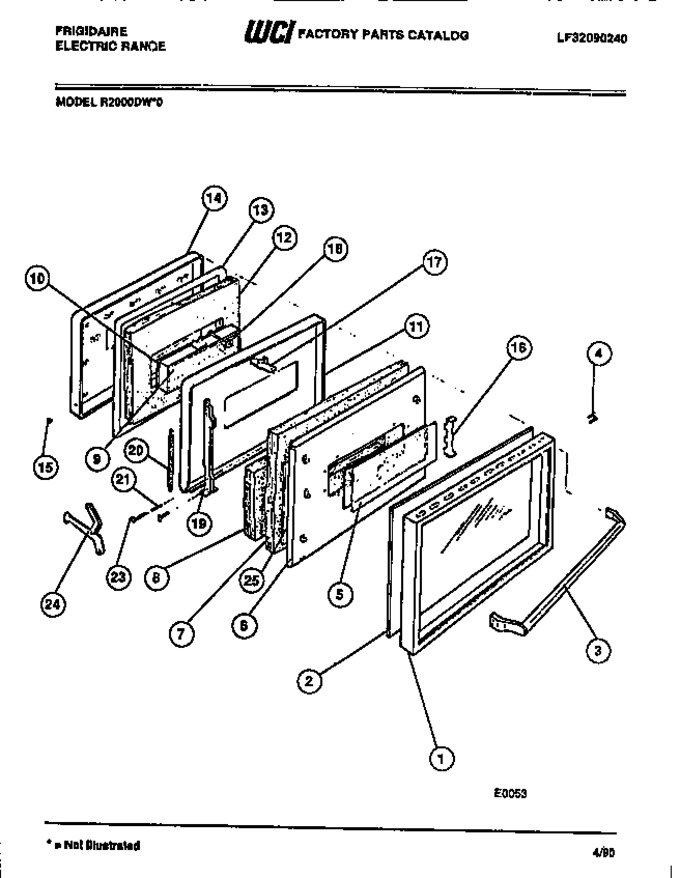

| 1 | 5308015938 | Frame |
|
- | |||||
| 2 | 5308012546 | Glass, Outer |
|
- | |||||
| 3 | 5303051716 | Handle |
|
- | |||||
| 4 | 5303051860 | Screw (4) |
|
- | |||||
| 5 | 5303051713 | Glass, Inner |
|
- | |||||
| 6 | 3051712 | Panel, Airwash |
|
- | |||||
| 7 | 5301322652 | Insulation, Airwash |
|
- | |||||
| 8 | 3008677 | Insulation, Liner |
|
- | |||||
| 9 | 3205235 | Glass, Package |
|
- | |||||
| 10 | 3051706 | Seal Window |
|
- | |||||
| 11 | 3017530 | Liner, Door |
|
- | |||||
| 12 | 3008673 | Insulation, Baffle |
|
- | |||||
| 13 | 5303051704 | Seal, Door |
|
$ 388.08 | |||||
| 14 | 3017634 | Liner, Shield |
|
- | |||||
| 15 | 3051807 | Button, Plug (2) |
|
- | |||||
| 16 | 3204652 | Retainer, Glass (2) |
|
- | |||||
| 17 | 5301167830 | Strike, Assembly |
|
- | |||||
| 18 | 3051785 | Washer, Padded |
|
- | |||||
| 19 | 3051565 | Channel (2) |
|
- | |||||
| 20 | 5308003186 | Spring (2) |
|
- | |||||
| 21 | 08950070 | Roller Kit (2) |
|
- | |||||
| 23 | 5308012004 | Stud (2) |
|
$ 8.29 | |||||
| 24 | 5308003183 | Hinge Arm Assembly (2) |
|
$ 90.35 | |||||
| 25 | 3051862 | Foil, Aluminum |
|
- |
