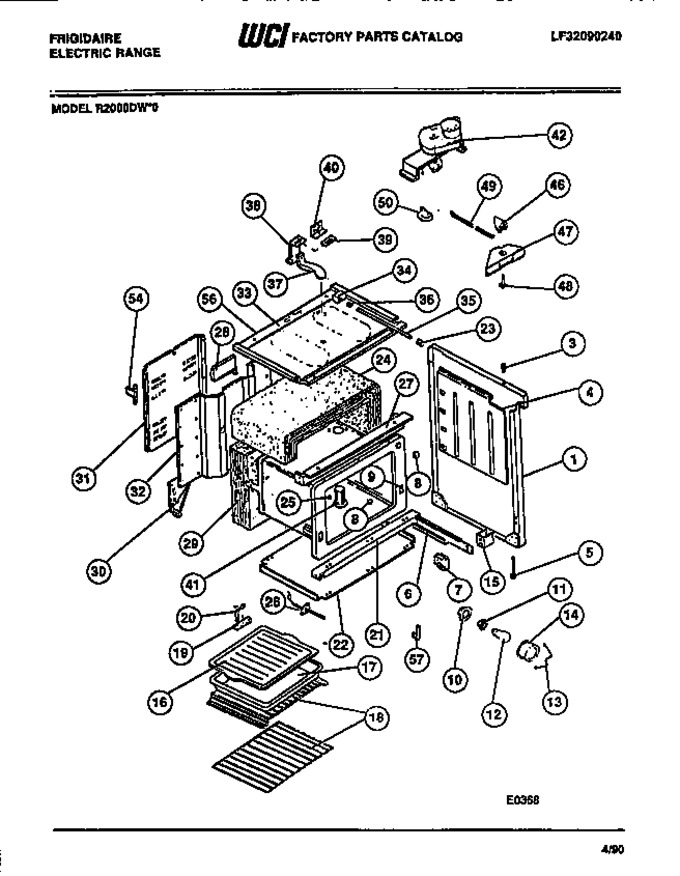

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012527 | Side Panel, Rh White |
|
- | |||||
| 3 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 4 | 3051632 | Retainer, Insulation (2) |
|
- | |||||
| 5 | 3205294 | Leg, Leveller (4) |
|
- | |||||
| 6 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 7 | 3051654 | Guide, Drawer Front (2) |
|
- | |||||
| 8 | 3204817 | Plug, Button 3/4`` (2) |
|
- | |||||
| 9 | 3205272 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 12 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 13 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 15 | 3051653 | Spacer, Drawer Rail (2) |
|
- | |||||
| 16 | 3205234 | Grille, Broiler |
|
- | |||||
| 17 | 3205232 | Pan, Broiler |
|
- | |||||
| 18 | 5303131973 | Rack, Regular |
|
- | |||||
| 19 | 5303051098 | Terminal Block |
|
- | |||||
| 20 | 5301145190 | Strap, Ground |
|
- | |||||
| 21 | 3200927 | Channel, Oven Support Cover |
|
- | |||||
| 22 | 08015969 | Panel, Bottom |
|
- | |||||
| 23 | 3051251 | Cover, Rod End |
|
- | |||||
| 24 | 5303051630 | Insulation, Oven Wrap |
|
- | |||||
| 25 | 3051796 | Plug, Button, Therm Bulb Hole |
|
- | |||||
| 26 | 5303209695 | Probe, Oven Temp. |
|
- | |||||
| 27 | 3203178 | Channel, Oven Support Upper |
|
- | |||||
| 28 | 3051634 | Channel, Air |
|
- | |||||
| 29 | 5303051630 | Insulation, Oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 5303051856 | Wire, Cover |
|
- | |||||
| 32 | 3205259 | Back, Range |
|
- | |||||
| 33 | K005025704 | Panel, Subtop |
|
- | |||||
| 34 | W10169313 | Switch, Door (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 35 | 3051645 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 37 | 3051655 | Ven, Tube Upper |
|
- | |||||
| 38 | 3051656 | Bracket, Vent Tube |
|
- | |||||
| 39 | 3051666 | Gasket, Oven Vent Tube |
|
- | |||||
| 40 | 3051643 | Bracket, Door Latch Switch |
|
- | |||||
| 41 | 3205683 | Vent Tube |
|
- | |||||
| 42 | 5303016242 | Motor, Latch |
|
- | |||||
| 46 | 3202387 | Latch, Door |
|
- | |||||
| 47 | 3051647 | Housing-door Latch |
|
- | |||||
| 48 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 3202430 | Switch, Lower, & Upper (2) |
|
- | |||||
| 54 | 3017556 | Ballast |
|
- | |||||
| 56 | 3205257 | Channel, Sub Top |
|
- | |||||
| 57 | 3051810 | Retainer-door (2) |
|
- | |||||
| 1A | 5308012528 | Side Panel, Lh White |
|
- | |||||
| 30A | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 57A | 3203574 | Plate, Conduit Mtg (ni) |
|
- | |||||
| 57B | 3934063 | Anti, Tip Kit (ni) |
|
- | |||||
| 57C | 3051550 | Bracket, Thermo Bulb (ni) |
|
- | |||||
| 6A | 3051652 | Rail, Drawer Lh |
|
- |
