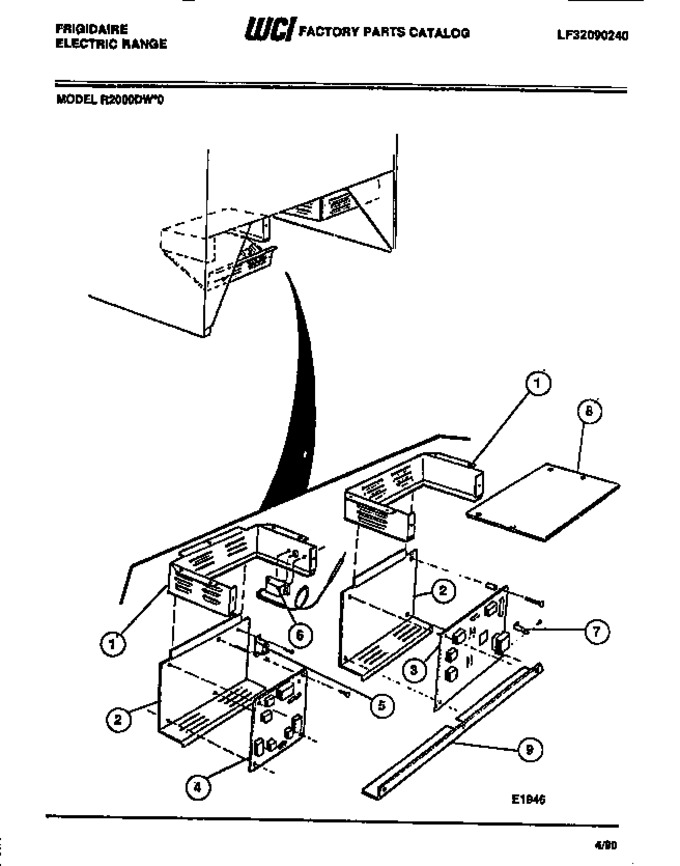

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209689 | Housing, Pc Board (2) |
|
- | |||||
| 2 | 5303209690 | Plate, Pc Board (2) |
|
- | |||||
| 3 | 3205845 | Board, Pc |
|
- | |||||
| 4 | 5303209691 | Board, Pc |
|
- | |||||
| 5 | 5303209692 | Relay, Heat Ready |
|
- | |||||
| 6 | 5303209693 | Thermostat, Limit |
|
- | |||||
| 7 | 5303209694 | Bracket, Transformer |
|
- | |||||
| 8 | 5303209732 | Plate, Airwash |
|
- | |||||
| 9 | 08015994 | Bracket, Pc Housing |
|
- |
