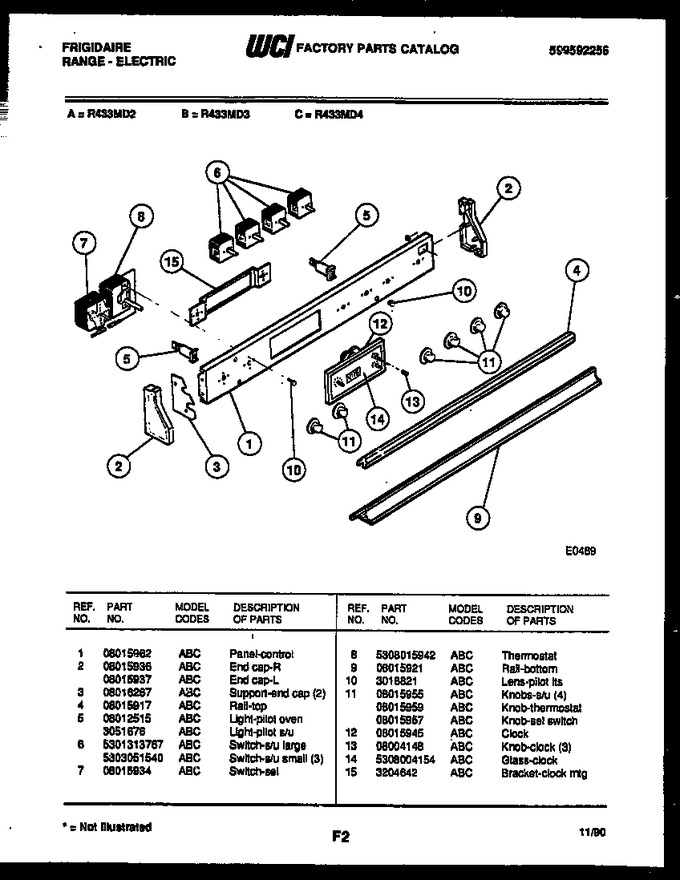

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08015962 | Panel, Control |
|
- | |||||
| 2 | 08015936 | End Cap-r |
|
- | |||||
| 2 | 08015937 | End Cap-l |
|
- | |||||
| 3 | 08016267 | Support-end Cap (2) |
|
- | |||||
| 4 | 08015917 | Rail, Top |
|
- | |||||
| 5 | 3051676 | Light-pilot S/u |
|
- | |||||
| 5 | 08012515 | Light - Pilot Oven |
|
- | |||||
| 6 | 5301313767 | Switch-s/u Large |
|
- | |||||
| 7 | 08015934 | Switch, Sel |
|
- | |||||
| 8 | 5308015942 | Thermostat |
|
- | |||||
| 9 | 08015921 | Rail, Bottom |
|
- | |||||
| 10 | 3016821 | Lens-pilot Its |
|
- | |||||
| 11 | 08015955 | Knobs-s/u (4) |
|
- | |||||
| 12 | 08015945 | Clock |
|
- | |||||
| 13 | 08004148 | Knob, Clock (3) |
|
- | |||||
| 14 | 5308004154 | Glass, Clock |
|
- | |||||
| 15 | 3204642 | Bracket-clock Mtg |
|
- | |||||
| 11A | 08015959 | Knob, Thermostat |
|
- | |||||
| 11B | 08015957 | Knob-sel Switch |
|
- | |||||
| 6A | 5303051540 | Switch-s/u Small (3) |
|
- |
