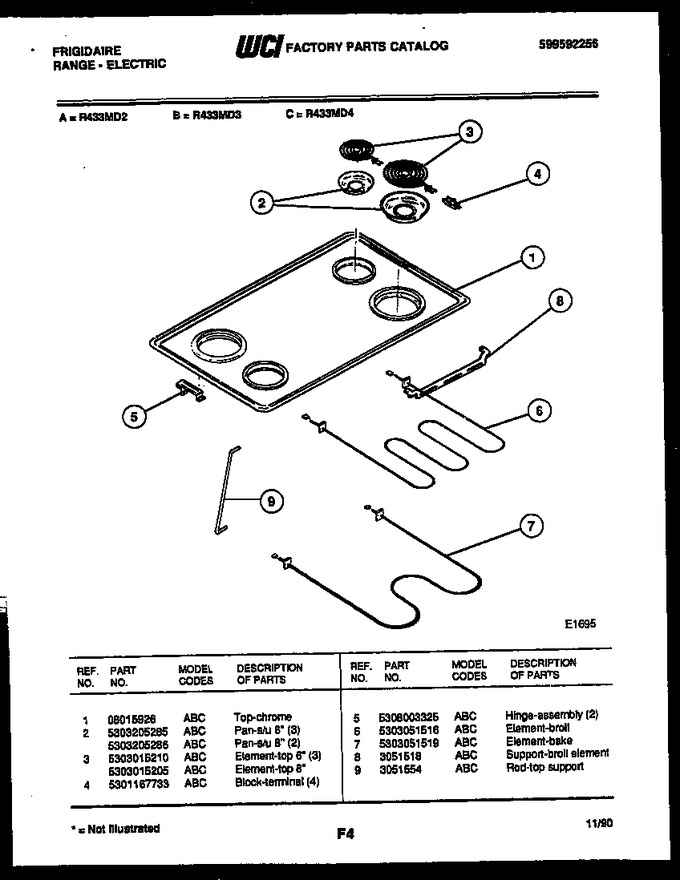

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08015926 | Top-chrome |
|
- | |||||
| 2 | 5303205285 | Pan-s/u 6`` (3) |
|
- | |||||
| 3 | 5303015210 | Element-top 6`` (3) |
|
- | |||||
| 4 | 5303935058 | Block-terminal (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 5 | 5308003325 | Hinge Assembly (2) |
|
- | |||||
| 6 | 5303051516 | Element-broil |
|
$ 189.23 | |||||
| 7 | 5303051519 | Element-bake |
|
Immediately | $ 44.70 | ||||
| 8 | 3051518 | Support Broil Element |
|
- | |||||
| 9 | 3051554 | Rod-top Support |
|
- | |||||
| 2A | 5303205286 | Pan-s/u 8`` (2) |
|
- | |||||
| 3A | 5303015205 | Element-top 8`` |
|
- |
