02 - Control Panel
03 - Door Parts
04 - Cooktop And Broiler Parts
05 - Drawer Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:

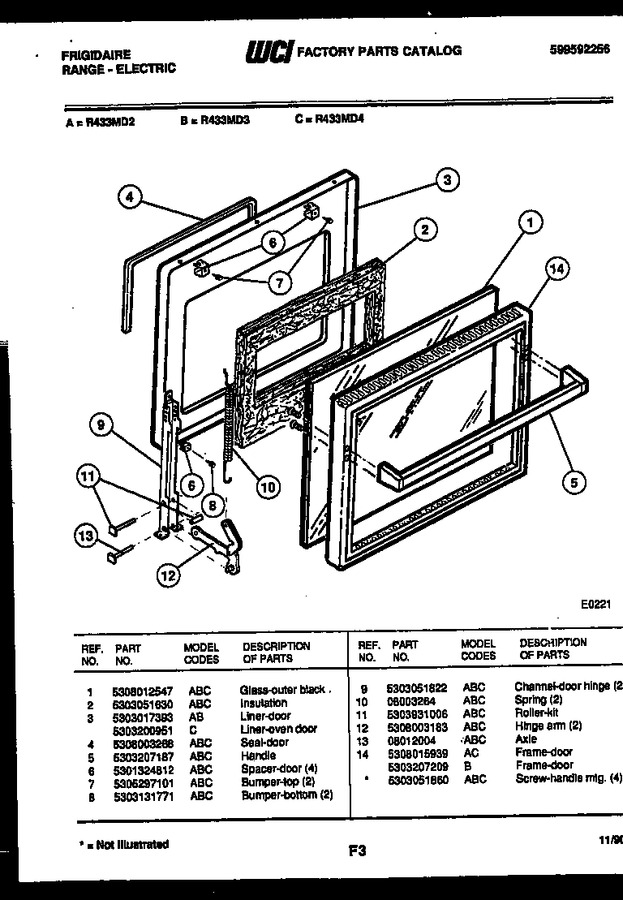

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012547 | Glass-outer Black |
|
- | |||||
| 2 | 5303051630 | Insulation |
|
- | |||||
| 3 | 5303017393 | Liner, Door |
|
- | |||||
| 4 | 5308003268 | Seal, Door |
|
- | |||||
| 5 | 5303207187 | Handle |
|
- | |||||
| 6 | 5301324812 | Spacer-door (4) |
|
- | |||||
| 7 | 5305297101 | Bumper-top (2) |
|
- | |||||
| 8 | 5303131771 | Bumper-bottom (2) |
|
- | |||||
| 9 | 5303051822 | Channel, Door Hinge (2) |
|
- | |||||
| 10 | 08003264 | Spring-oven Door |
|
- | |||||
| 11 | 5303931006 | Roller-kit |
|
- | |||||
| 12 | 5308003183 | Hinge, Arm (2) |
|
$ 90.35 | |||||
| 13 | 08012004 | Axle |
|
- | |||||
| 14 | 5308015939 | Frame-door |
|
- | |||||
| *29161 | 5303051860 | Screw-handle Mtg. (4) |
|
- |
